✦Truss: Straight / Corners

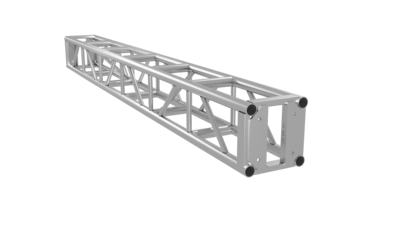

TOMCAT Light Duty 12x12 Plated

Manufacturer
Area Four Industries
Model
TC1212-120B (10 ft)
Code
GW-N5S0NG
Data status
Level 1 / 5
AI-parsed

❋ Specs

8
Cross section
cross_section_mm
304.8 x 304.8 (12 in x 12 in)mm
1
Chord Tube In
chord_tube_in
2 OD x 1/8 wallin
1
Diagonal Tube In
diagonal_tube_in
1 OD x 1/8 wallin
1
Weight 10Ft Length
weight_10ft_length_kg
28kg
1
Material alloy
material_alloy
6061-T6 / 6082-T6
1
Max Udl At 20Ft Span Lbs Per Ft
max_udl_at_20ft_span_lbs_per_ft
126lbs/ft
1
Max Center Point Load At 20Ft Span Lbs
max_center_point_load_at_20ft_span_lbs
1261lbs
1
Hole Centers
hole_centers_mm
171.98 (6.77 in)mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
