✦Video & Media

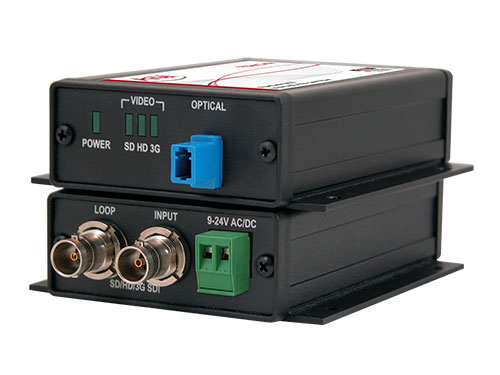

FiberLink 3350

Manufacturer
Artel Video Systems
Model
3350/3351
Code
GW-CGDFWV
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Channels
channels
1 In (Tx) / 2 Out (Rx)
1
Max Signal Rate Gbps
max_signal_rate_gbps
2.97Gb/s
1
Supported Standards
supported_standards
SD/HD/3G-SDI, DVB-ASI (SMPTE 259M/292/424M)
1
Wavelength
wavelength_nm
1310 Tx / 1100-1620 Rxnm
1
Fiber Type
fiber_type
single mode and multimode
1
Connector
connector
LC or ST
1
Dimensions
dimensions_mm
133 x 89 x 30mm
1
Weight
weight_g
196g
1
Power Tx
power_tx_w
1.6W
1
Power Rx
power_rx_w
1.4W
1
Input voltage
input_voltage_v
9-24 AC/DCV
1
Operating temperature
operating_temperature_c
-10 to 50C
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
