✦Video & Media

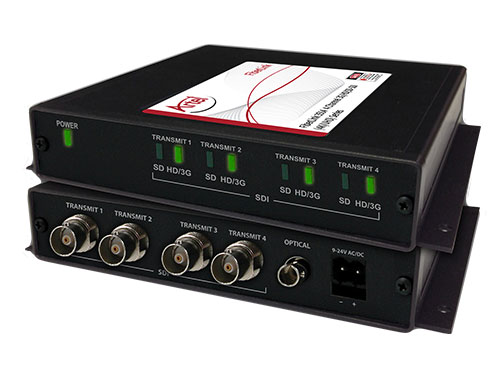

FiberLink 3514

Manufacturer
Artel Video Systems
Model
3514/3515
Code
GW-GU2I3I
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Channels
channels
4 independent 3G/HD/SD-SDI
1
Max Signal Rate Gbps
max_signal_rate_gbps
2.97Gb/s
1
Video Support
video_support
4K/UHD up to 60 fps (all 4 inputs)
1
Wavelength
wavelength_nm
1511, 1531, 1551, 1571nm
1
Fiber Type
fiber_type
single mode or multimode
1
Connector
connector
LC or ST
1
Dimensions Whl
dimensions_whl_mm
165 x 29 x 152mm
1
Weight
weight_g
382g
1
Power Tx
power_tx_w
5W
1
Power Rx
power_rx_w
4W
1
Input voltage
input_voltage_v
9-24 AC/DCV
1
Operating temperature
operating_temperature_c
-10 to 50C
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
