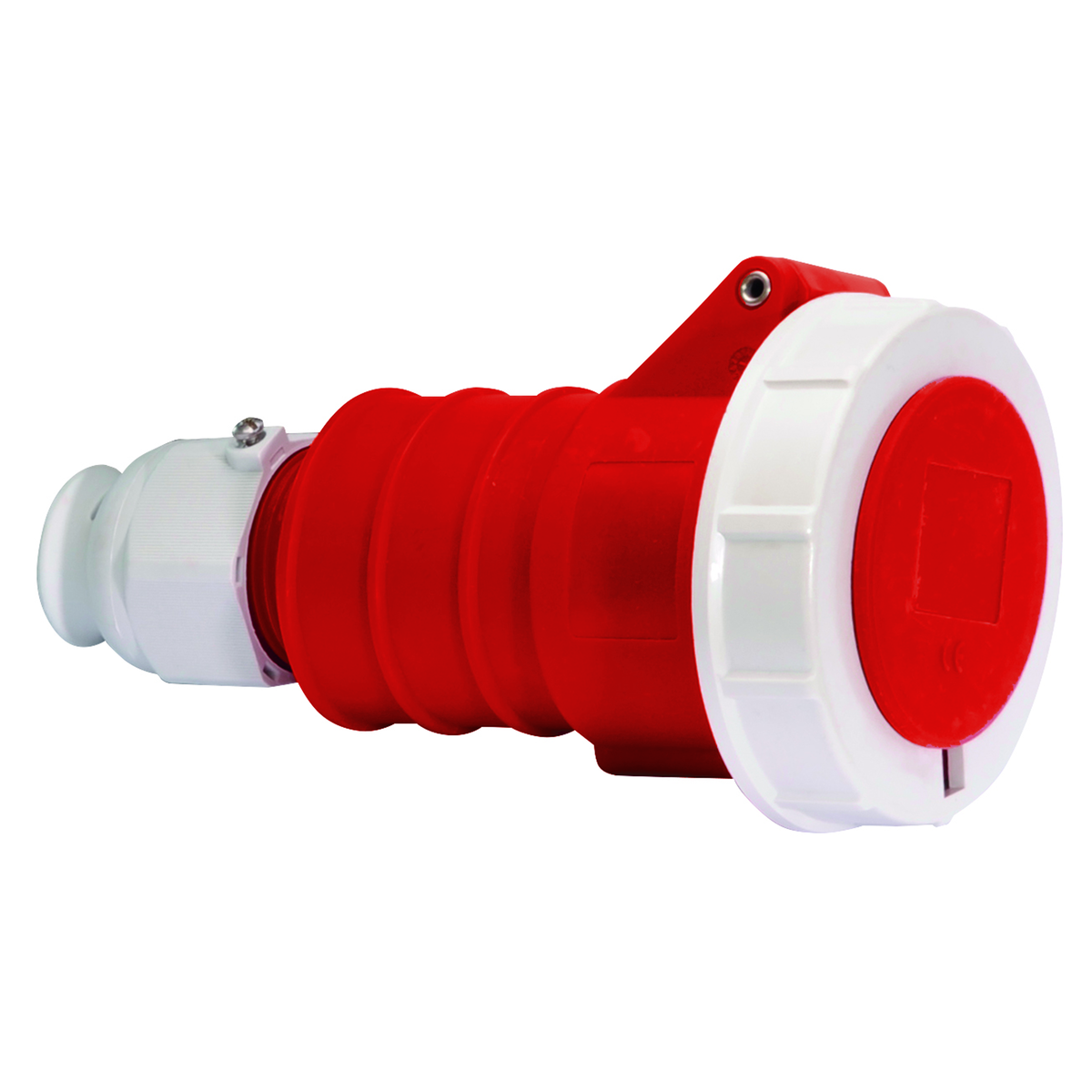

QUICK-CONNECT TE Connector 32A/5p/IP67/69

Manufacturer
Bals Elektrotechnik
Model
31247
Code
GW-WXGNJ2
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Rated current
rated_current_a
32A
1
Poles
poles
5 (3p+N+PE)p
1
Rated voltage
rated_voltage_v
200/346-240/415V
1
Frequency
frequency_hz
50/60Hz
1
Earth Contact Position H
earth_contact_position_h
6h
1
Terminal Cross Section Mm2
terminal_cross_section_mm2
6.0mm2
1
Cable diameter
cable_diameter_mm
13-27mm
1
Weight
weight_kg
0.397kg
1
Dimensions
dimensions_mm
196 x 101.5 x 106 (HxWxD)mm
1
Connection Technology
connection_technology
screwless QUICK-CONNECT TE with Kontex contact
1
Enclosure material
enclosure_material
polyamide
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
