✦Line Arrays

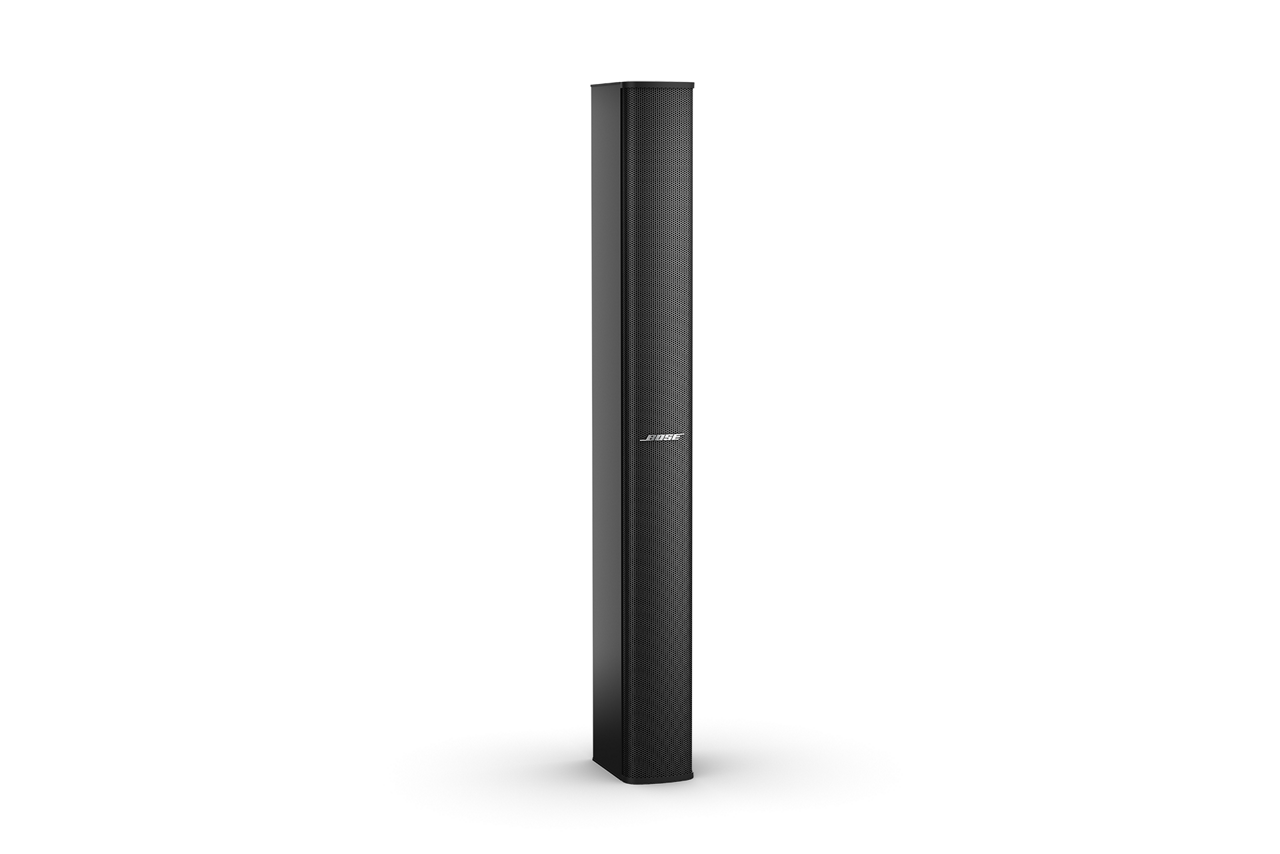

MSA12X

Manufacturer
Bose Professional
Model
787856-1110
Code
GW-CH8I7S
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Frequency range
frequency_range_hz
58-18000Hz
1
Max SPL
max_spl_db
103 peak @1m (1 module)dB
1
Power
power_w
600 (12x 50)W
1
Drivers
drivers
12x 2.25-inch independently amplified
1
Horizontal coverage
horizontal_coverage_deg
160deg
1
Beam Steering Vertical Deg
beam_steering_vertical_deg
+/-30 (1 module), +/-40 (2-3 modules)deg
1
Dimensions
dimensions
984 x 106 x 206 (H x W x D)mm
1
Weight
weight_kg
14.5kg
1
Network
network
Dante + analog line input
1
Enclosure material
enclosure_material
Extruded aluminum / powder-coated steel
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
