✦Moving Head (Spot/Wash/Beam)

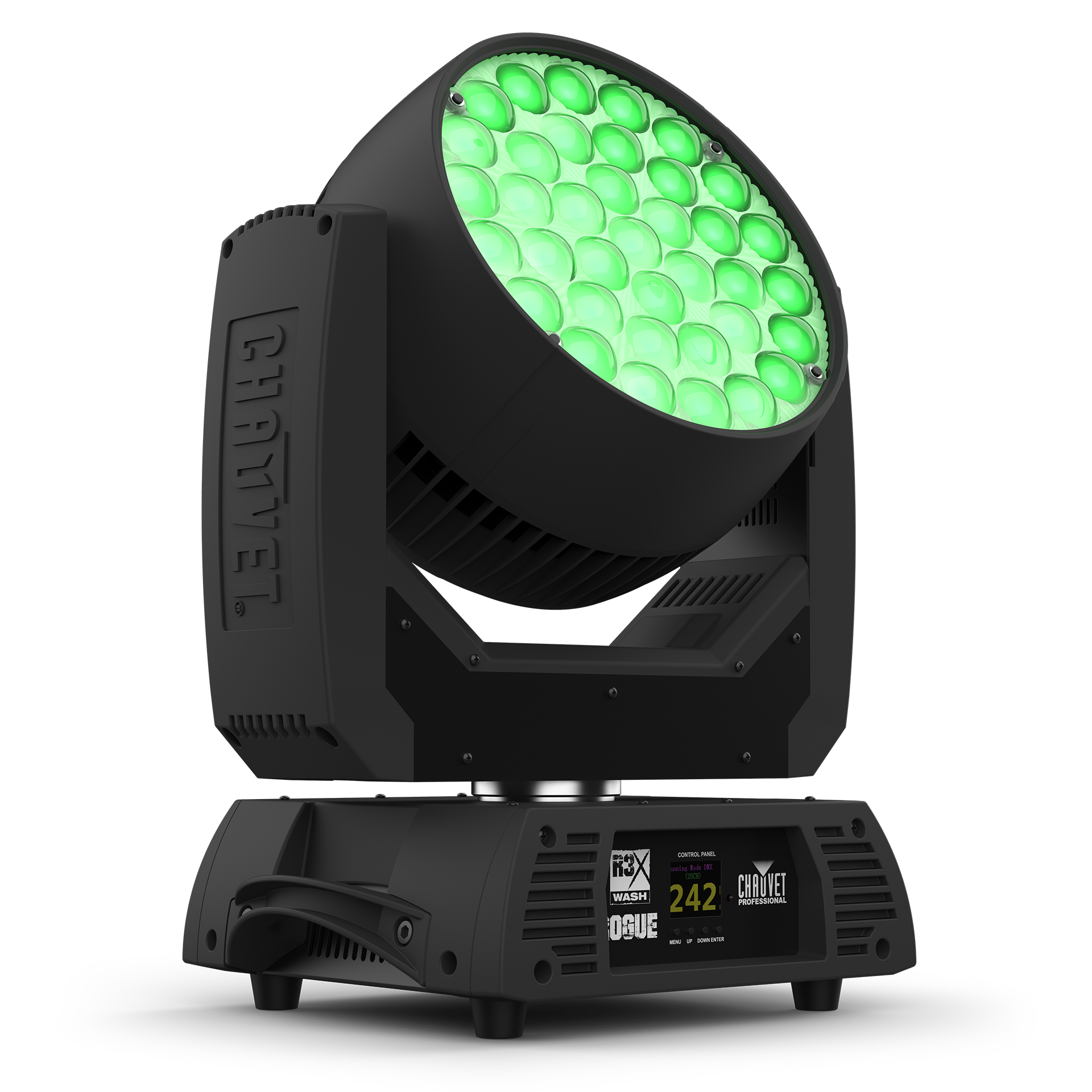

Rogue R3X Wash

Manufacturer
Chauvet Professional
Model
ROGUER3XWASH
Code
GW-JDNE0B
Data status
Level 1 / 5
AI-parsed

❋ Specs

18
Light source
light_source
37 LEDs (quad-color RGBW) 25 W, 1.5 A, 50,000 hours life expectancy
1
Drivers
drivers
37 x RGBW quad-color LED25 W each
1
Color temperature
color_temperature_k
2,800 to 10,000K
1
Beam angle
beam_angle_deg
9.3 to 33.9deg
1
Field angle
field_angle_deg
11.6 to 49.5deg
1
Cutoff Angle
cutoff_angle
13.1 to 62.6deg
1
Beam angle
beam_angle_deg
9.3 to 62.6deg
1
Source Lumens
source_lumens
17,000lm
1
Output lumens
output_lumens
13,440lm
1
Illuminance At 9 3 Deg
illuminance_at_9_3_deg
18,260 lux @ 5 m
1
Illuminance At 62 6 Deg
illuminance_at_62_6_deg
1,556 lux @ 5 m
1
Selectable Pwm Hz
selectable_pwm_hz
600, 1,200, 2,000, 4,000, 6,000, 15,000Hz
1
Dimensions
dimensions
15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm)
1
Weight
weight_kg
17.46kg
1
DMX channels
dmx_channels
21, 27, 62, 71, 107
1
Pixel Control Zones
pixel_control_zones
9 individually controllable zones
1
Input voltage
input_voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
1
Power
power_w
661 @ 120V; 653 @ 208V; 650 @ 230VW
1
