Video & Media

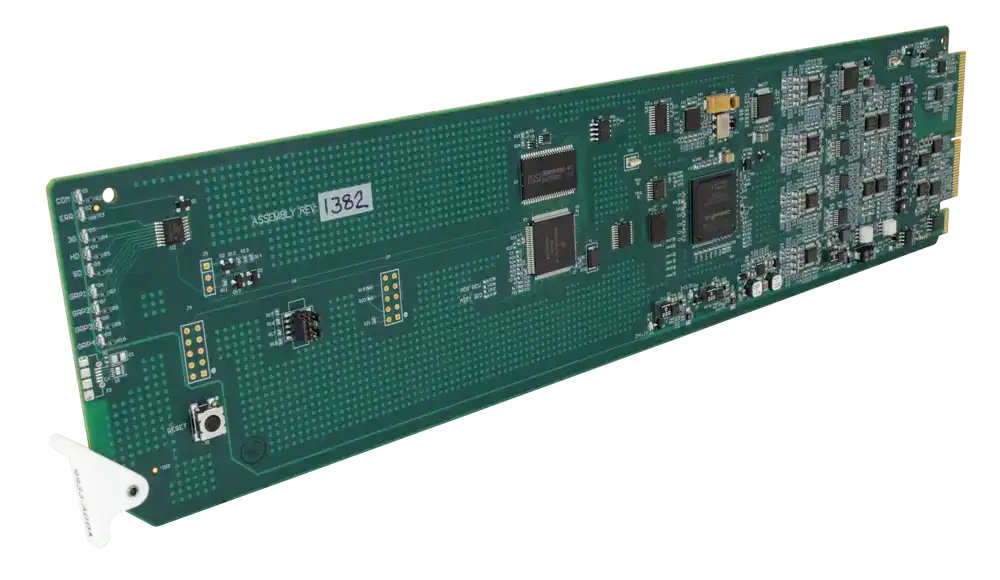

9933-EMDE-ADDA

Manufacturer
Cobalt Digital
Model
9933-EMDE-ADDA
Code
GW-E79EDA
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Sdi Formats
sdi_formats
3G / HD / SD-SDI (SMPTE 259M/292M/424M)
1
Aes Audio Channels
aes_audio_channels
16 (unbalanced)channels
1
Analog Audio Channels
analog_audio_channels
8 (balanced)channels
1
Audio Conversion Format
audio_conversion_format
48 kHz sampling, 24-bit
1
SDI I/O
sdi_io
1x 75-ohm BNC input, 1x 75-ohm BNC output
1
Sdi Receive Cable Length
sdi_receive_cable_length_m
120 / 180 / 360 (3G / HD / SD) Belden 1694Am
1
Return Loss Db
return_loss_db
>15 to 1.485 GHz; >10 to 2.97 GHzdB
1
Analog Snr Db
analog_snr_db
115 (A-weighted)dB
1
Analog Thd N Db
analog_thd_n_db
-96 (20 Hz to 10 kHz)dB
1
Analog Frequency Response Hz
analog_frequency_response_hz
20-20000 (±0.2 dB)Hz
1
