Video & Media

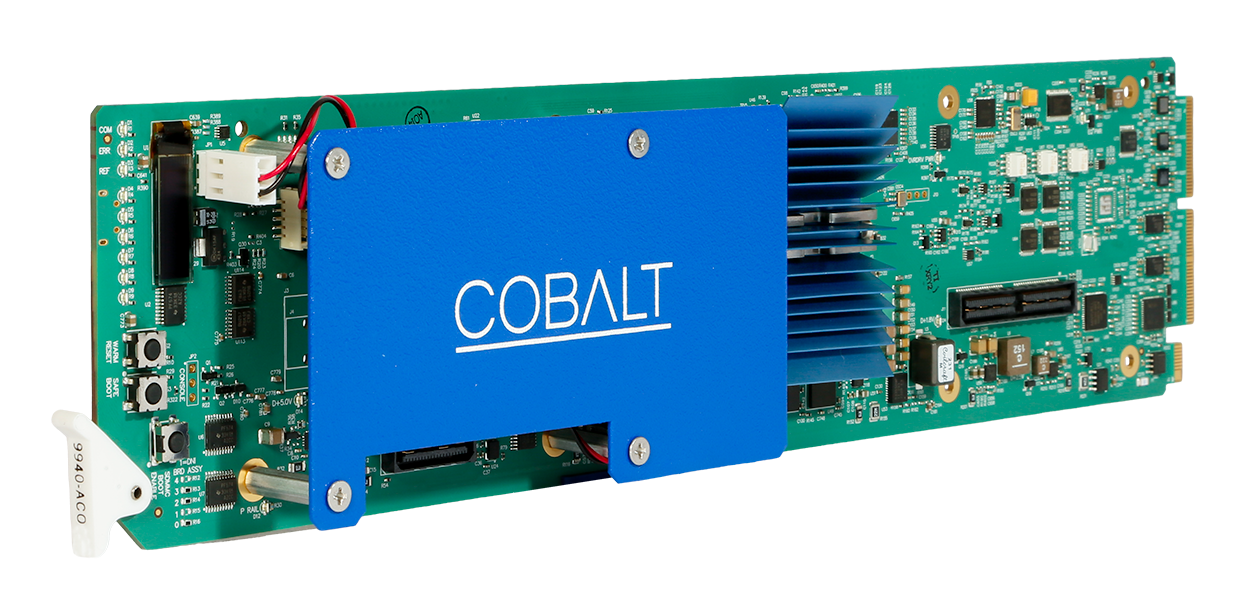

9940-ACO

Manufacturer
Cobalt Digital
Model
9940-ACO
Code
GW-8UUXZ7
Data status
Level 1 / 5
AI-parsed

❋ Specs

8
Sdi Formats
sdi_formats
3G / HD / SD-SDI (12G on 9940-ACO-12G variant)
1
Sdi Inputs Count
sdi_inputs_count
5inputs
1
Relay Protected Output
relay_protected_output
1 (latching bypass, survives power failure)output
1
Additional Sdi Outputs
additional_sdi_outputs
7 (with GPIO)outputs
1
Rear Module
rear_module
RM20-9940-A-HDBNC
1
Failover Triggers
failover_triggers
LOS, black/frozen frame, audio silence, forced manual select
1
Gpio
gpio
GPI IN 1-6, GPO OUT 1-2, GPO COM, GND
1
Option
option
Trouble Slate Inserter
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
