✦Video & Media

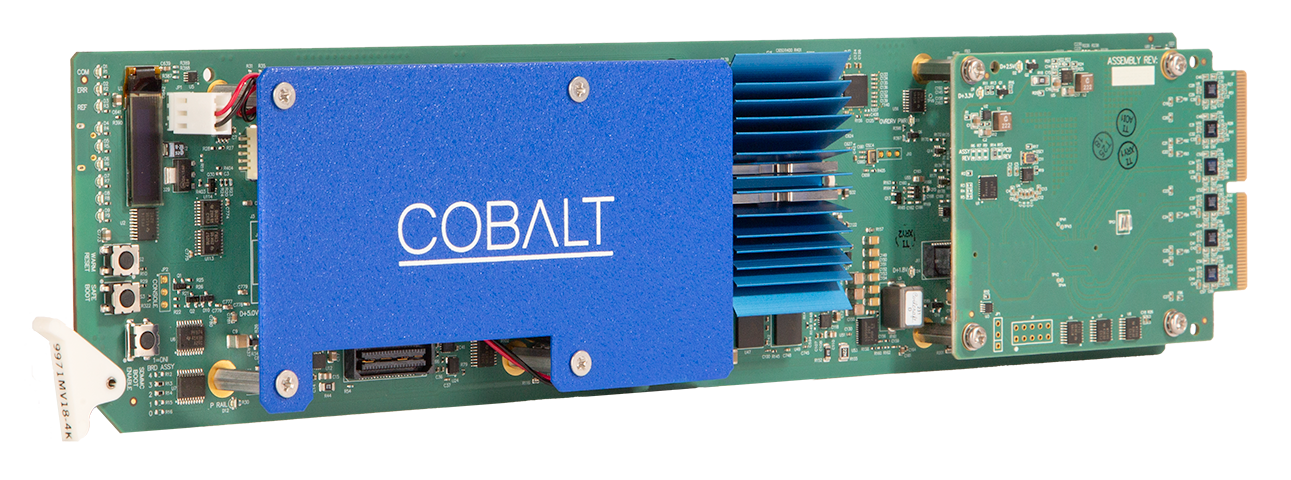

9971-MV18-4K

Manufacturer
Cobalt Digital
Model
9971-MV18-4K (UltraBlue)
Code
GW-L0QYT8
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Sdi Data Rates Gbps
sdi_data_rates_gbps
12G / 6G / 3G / 1.5G (HD) / 0.27 (SD)Gbps
1
Sdi Inputs Count
sdi_inputs_count
18BNC 75-ohm
1
Sdi Outputs Count
sdi_outputs_count
4BNC 75-ohm
1
Hdmi Outputs
hdmi_outputs
up to 2 (HDMI 2.0, 4K)outputs
1
Max Pip Windows
max_pip_windows
18 (with 12G single-wire inputs)windows
1
SDI standards
sdi_standards
SMPTE ST2082-1/10, 424M, 292M, 259M-C
1
Return Loss Db
return_loss_db
>15 to 1.485 GHz; >10 to 2.97 GHz; >7 to 6 GHz; >5 to 12 GHzdB
1
Input Cable Length
input_cable_length_m
60 (11.88 Gbps) / 120 (2.97 Gbps) / 240 (1.485 Gbps) / 400 (270 Mbps) Belden 1694Am
1
Frame Density
frame_density
up to 5 cards per 2RU openGear framecards
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
