✦Video & Media

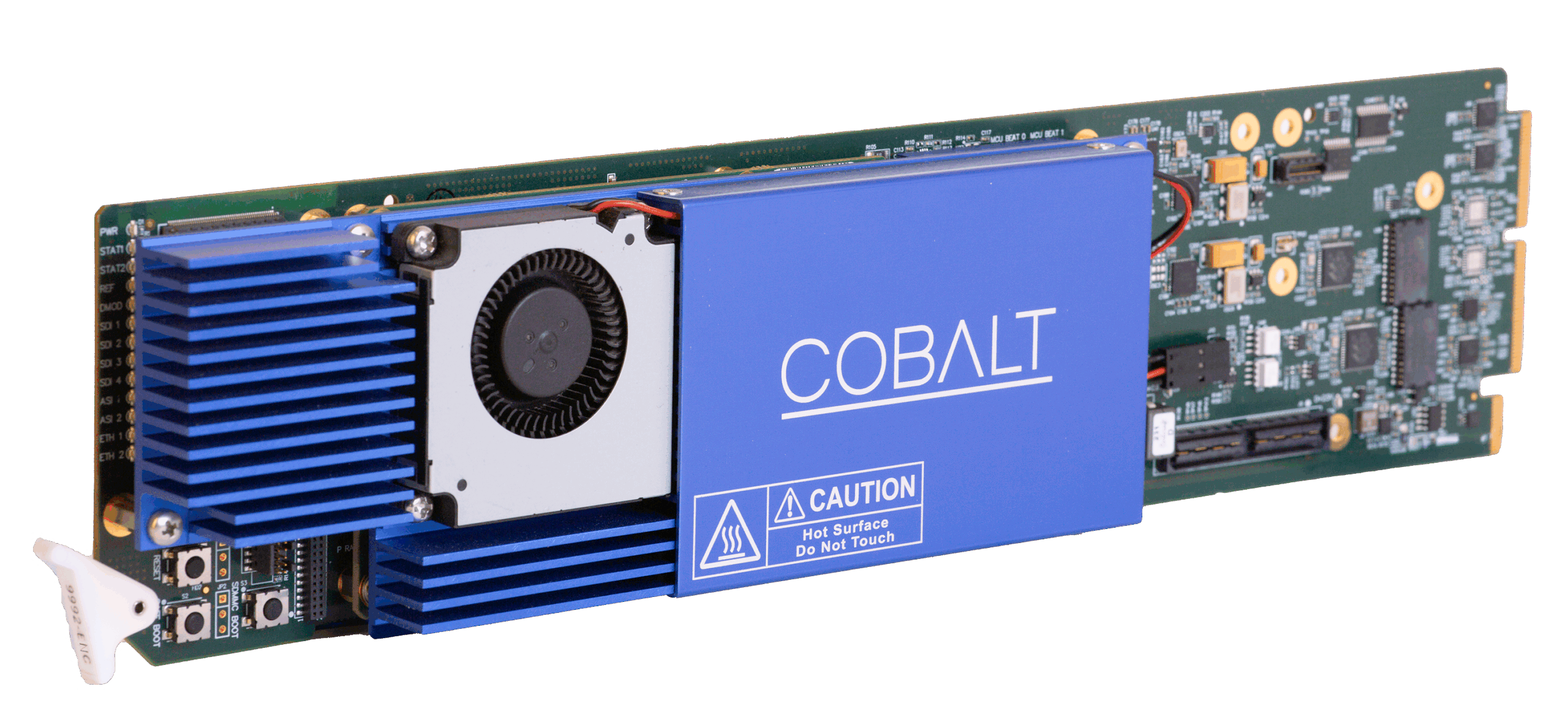

9992-ENC

Manufacturer
Cobalt Digital
Model
9992-ENC (PACIFIC)
Code
GW-UC2NB8
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Video codecs
video_codecs
MPEG-2, MPEG-4 AVC (H.264), HEVC (H.265, optional license)
1
Encode Channels
encode_channels
up to 4x 1080p60 or 1x UHD 4Kp60channels
1
SDI inputs
sdi_inputs
2x 12G/3G/HD/SD-SDI + 2x 3G/HD/SD-SDI (75-ohm)
1
Frame Rates Fps
frame_rates_fps
23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps
1
Output Interfaces
output_interfaces
2x DVB-ASI + 2x Gigabit Ethernet (UDP/RTP, HLS, RTMP)
1
Max Bitrate Uhd Mbps
max_bitrate_uhd_mbps
150Mbps
1
Max Bitrate Hd Mbps
max_bitrate_hd_mbps
40 (first HD channel up to 150)Mbps
1
Audio Encoding
audio_encoding
MPEG-1 Layer II, AAC-LC, HE-AAC, LPCM (SMPTE-302M), Dolby AC-3/EAC-3 (optional)
1
Encoder Latency Ms
encoder_latency_ms
10 (with Ultra-Low Latency option)ms
1
Frame Density
frame_density
up to 10 cards per openGear frame (40 HD or 10 UHD 4K channels)cards
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
