✦Line Arrays

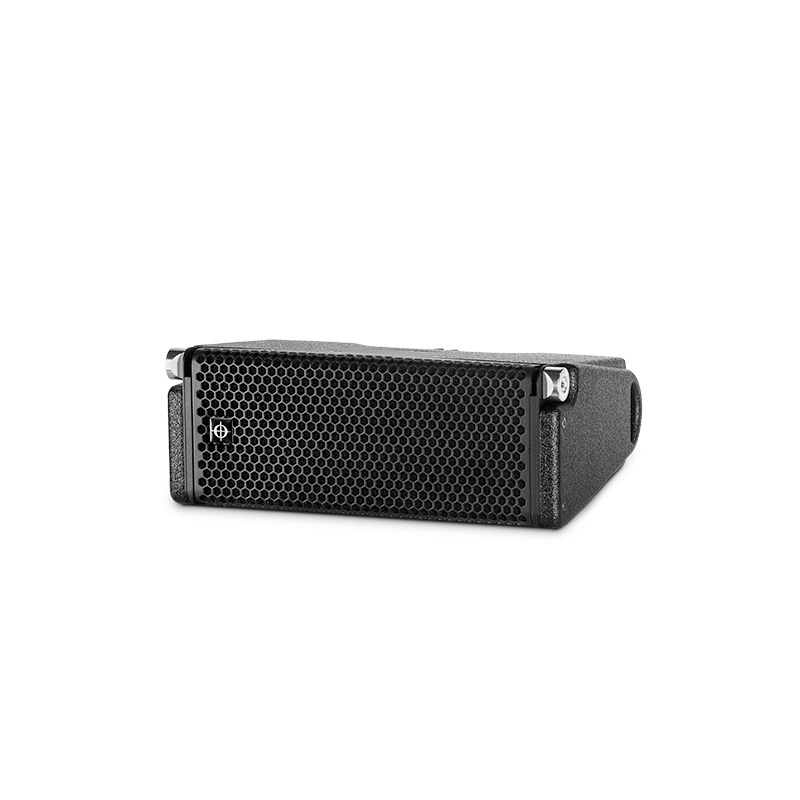

TiRAY

Manufacturer
Coda Audio
Model
TiRAY
Code
GW-KHGXTO
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Configuration
configuration
compact 2-way passive full-range line array
1
Frequency range
frequency_range_hz
70-20000 (-6 dB)Hz
1
Max SPL
max_spl_db
139 peak (single, 6 dB crest)dB
1
Horizontal coverage
horizontal_coverage_deg
100deg
1
Vertical coverage
vertical_coverage_deg
12deg
1
LF drivers
lf_drivers
2x 5-inch neodymium woofers, 1.5-inch voice coil, 150 W AES each
1
HF driver
hf_driver
1x 5-inch neodymium planar wave driver, 1.75-inch voice coil, 80 W AES
1
Power
power_w
300 AESW
1
Impedance
impedance_ohm
8ohm
1
Weight
weight_kg
9.9kg
1
Dimensions Wxhxd
dimensions_wxhxd_mm
404 x 155 x 253mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
