✦System Processors

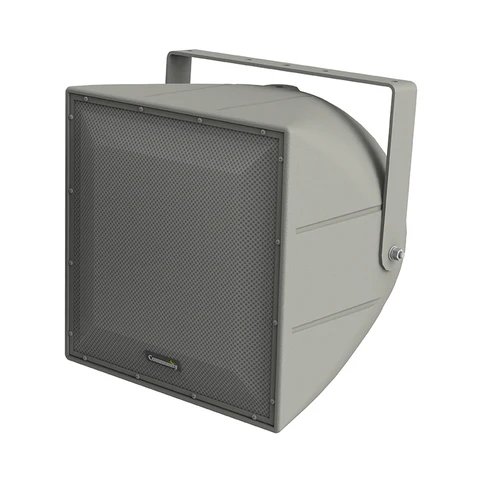

R.5HP

Manufacturer
Community Professional Loudspeakers
Model
R.5HP
Code
GW-HBC87O
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Type
type
3-way horn-loaded coaxial, weather-resistant (M200 midrange)
1
Frequency range
frequency_range_hz
90-16000Hz
1
Nominal Beamwidth
nominal_beamwidth
60 H x 40 Vdeg
1
Max SPL
max_spl_db
136 peak / 129 continuousdB
1
Power
power_w
200 continuous / 500 programW
1
Impedance
impedance_ohm
6ohm
1
Sensitivity
sensitivity_db
106 (125 Hz-10 kHz, 1W/1m)dB
1
Crossover frequency
crossover_hz
600 / 4000Hz
1
Drivers
drivers
LF 1x 12 in, MF 1x M200, HF 1x 1 in exit (all Ferrofluid-cooled)
1
Weight
weight_kg
19.2 (42.3 lbs)kg
1
Dimensions
dimensions
406.4 x 406.4 x 411.15 (16 x 16 x 16.187 in)mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
