Video & Media

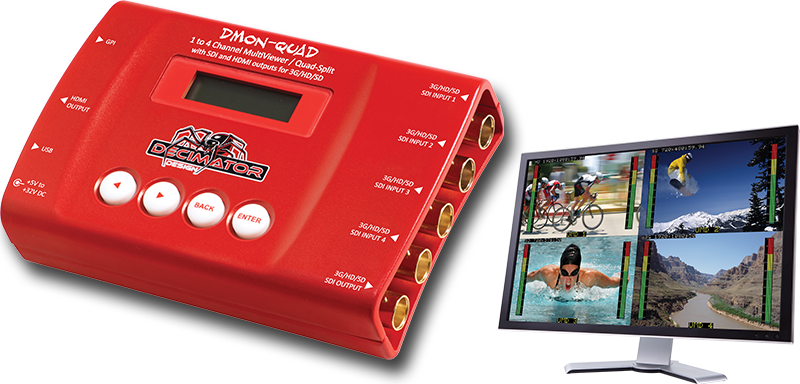

DMON-QUAD

Manufacturer
Decimator Design
Model
DMON-QUAD
Code
GW-6OVWXQ
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Dimensions
dimensions
79.5 x 123 x 29.5mm
1
Power Input Vdc
power_input_vdc
5-32V DC
1
SDI inputs
sdi_inputs
4x (3G/HD/SD)-SDI
1
SDI outputs
sdi_outputs
1x (3G/HD/SD)-SDI
1
Hdmi Outputs
hdmi_outputs
1x HDMI Type A
1
Multiviewer Windows
multiviewer_windows
4channels (1-to-4)
1
Audio Metering Channels
audio_metering_channels
8channels per window
1
Input Formats
input_formats
26formats (auto-detect)
1
Tallies Per Window
tallies_per_window
4tallies
1
Sdi Bitrate Max Gbps
sdi_bitrate_max_gbps
2.97Gb/s (3G-SDI SMPTE 424M)
1
Control
control
GPI + RS422/485 on RJ-45
1
Msrp Usd
msrp_usd
395USD
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
