✦Audio

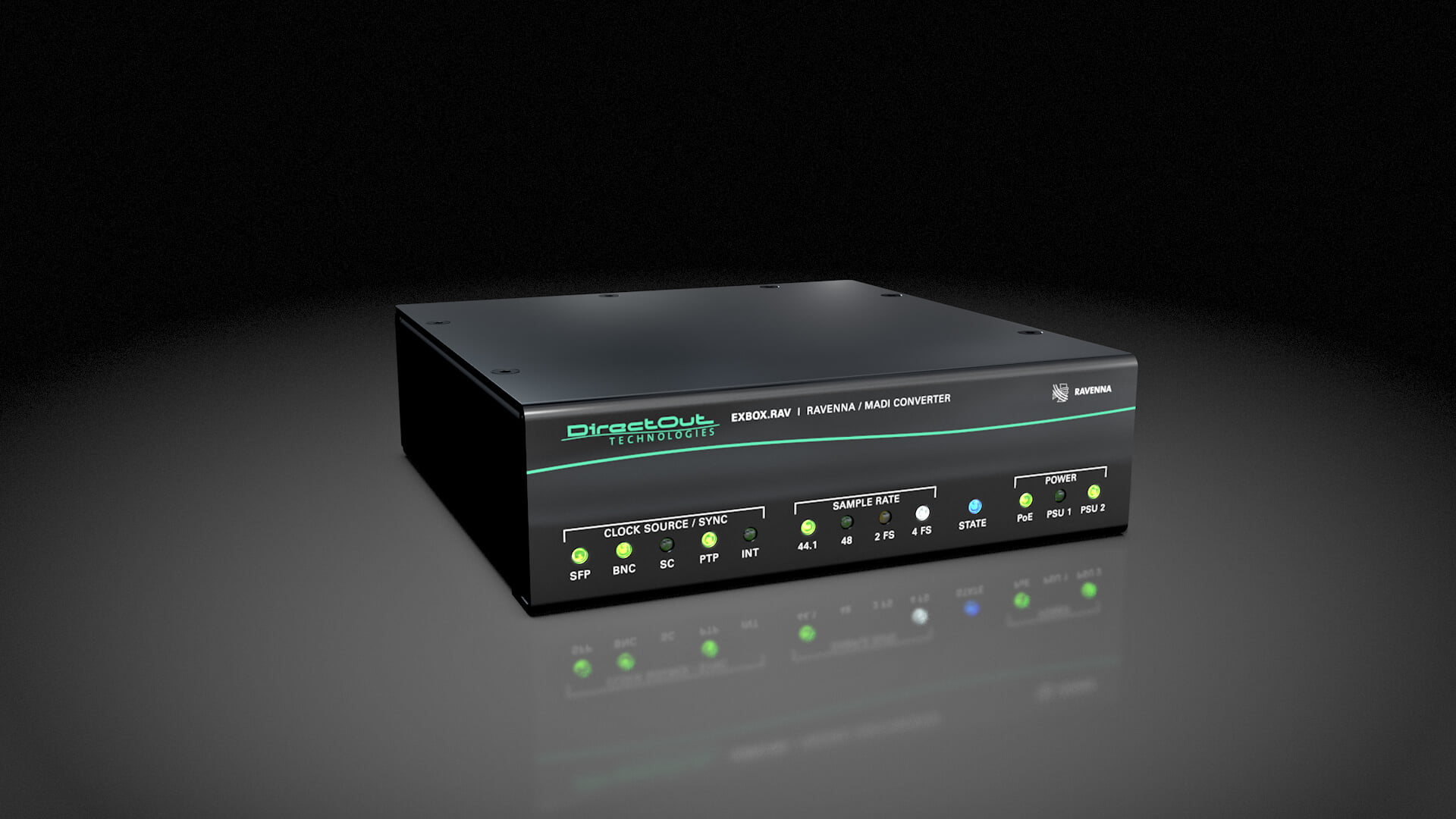

EXBOX.RAV

Manufacturer
DirectOut
Model
EXBOX.RAV
Code
GW-MX2ROK
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Madi Channels
madi_channels
64ch
1
Network Channels
network_channels
64 @1FS / 32 @2FS / 16 @4FS (up to 32 streams)ch
1
Sample rate
sample_rate_khz
44.1/48/88.2/96/176.4/192kHz
1
Madi Ports
madi_ports
1x BNC coax, 1x SC optical, 1x SFPports
1
Network ports
network_ports
3x RJ45 (1 Gbit/s) + 1x RJ45 PoE (built-in switch)ports
1
Standards
standards
RAVENNA, AES67, SMPTE ST 2110-30/-31, ST 2022-7, NMOS
1
Power supply
power_supply
external 2x Hirose (9-24V), 1x PoE (802.3af)
1
Dimensions
dimensions
140 x 42 x 140 (W x H x D)mm
1
Weight
weight_kg
1kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
