✦System Processors

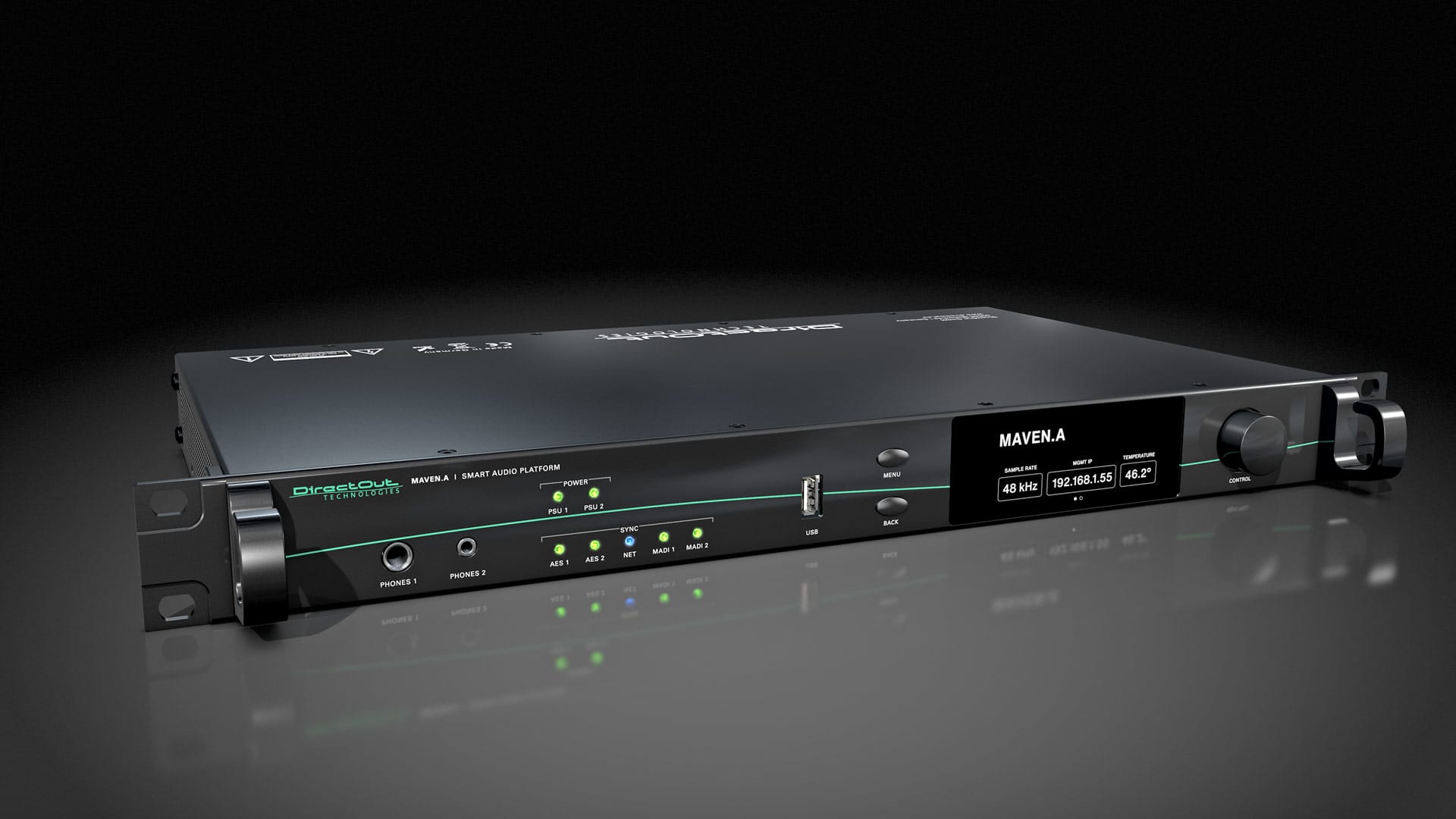

MAVEN.A

Manufacturer
DirectOut
Model
MAVEN.A
Code
GW-EKCKCH
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Max Inputs Ch
max_inputs_ch
400ch
1
Max Outputs Ch
max_outputs_ch
402ch
1
Sample rate
sample_rate_khz
44.1/48/88.2/96/176.4/192kHz
1
Dsp Flex Channels
dsp_flex_channels
64ch
1
Matrix Mixer
matrix_mixer
64 x 64
1
Iir Filters
iir_filters
64
1
Fir Filters
fir_filters
16
1
Option Slots
option_slots
1x A, 2x Cslots
1
Network Formats
network_formats
RAVENNA/AES67, Dante, AVB/MILAN, SoundGrid, MADI, AES3, USB
1
Rack units
rack_units_ru
1RU
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
