✦Lighting

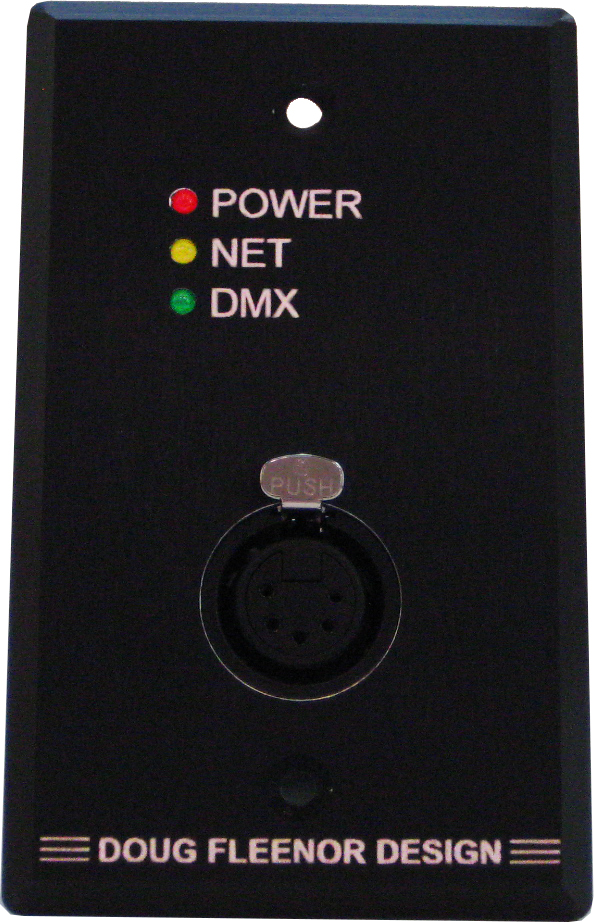

NODE1 Ethernet to DMX Interface

Manufacturer
Doug Fleenor Design
Model
NODE1 (NODE1-A, NODE1-P)
Code
GW-XJYNTB
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
DMX ports
dmx_ports
1 (configurable as input or output)
1
Network protocols
network_protocols
E1.31 sACN, draft sACN, Art-Net, Strand ShowNet, KiNET (web-browser configurable)
1
Ethernet Connector
ethernet_connector
RJ45 (single cat5 cable for power and signal)
1
Power input
power_input
802.3af PoE (Power over Ethernet), 3W
1
Isolation
isolation_v
1500V
1
Input Signal
input_signal_v
0.2 minimum, 12 maximumV
1
Connectors
connectors
Gold-plated 5-pin XLR (female typical, male on request)
1
Dimensions
dimensions_in
Faceplate 4.5H x 2.75W; rear 2.75H x 1.75D x 1.6W (single-gang box)in
1
Weight
weight_lb
0.5lb
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
