Power

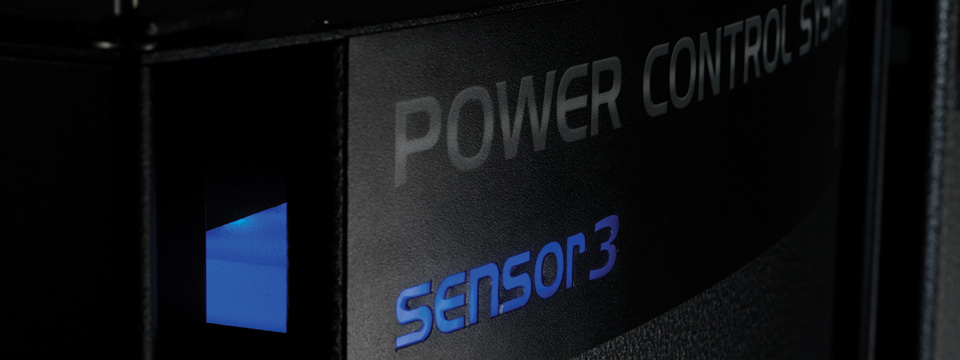

Sensor3 SR3-48 Rack

Model
SR3-48
Code
GW-VSGZVO
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Modules Count
modules_count
48modules
1
Dimmers Max Count
dimmers_max_count
96dimmers
1
Dimmer Power Per Module Kw
dimmer_power_per_module_kw
2.4kW
1
Primary Feed Rating
primary_feed_rating_a
800A
1
Input voltage (AC)
input_voltage_vac
120/208VAC 3-phase
1
Input Voltage Range Vac
input_voltage_range_vac
91-139VAC
1
Frequency range
frequency_range_hz
47-63Hz
1
Sccr
sccr_a
100000A RMS symmetrical
1
Weight Empty
weight_empty_kg
100kg
1
Dimensions
dimensions
83.1 x 14.8 x 22.8in (H x W x D)
1
Operating temperature
operating_temperature_c
0-40°C
1
Control protocols
control_protocols
Net3, sACN, DMX512-A (two inputs)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
