✦Power

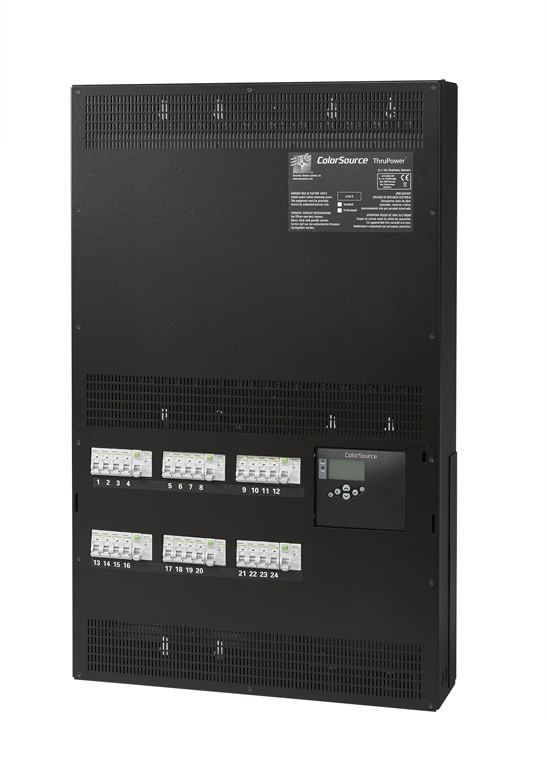

ThruPower Module TR20AF

Manufacturer
Electronic Theatre Controls
Model
TR20AF (7050A1201)
Code
GW-YZG3G4
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Circuits Count
circuits_count
2circuits (dual density)
1
Per Circuit Current
per_circuit_current_a
20A
1
Power Per Circuit Kw
power_per_circuit_kw
2.4kW
1
Rise Time Us
rise_time_us
500μS
1
Operating Modes
operating_modes
dimmer / relay (switched) / manual ThruPower bypass
1
Sccr
sccr_a
100000A
1
Breaker Inrush Rating X
breaker_inrush_rating_x
20x rated
1
Dimensions
dimensions
1.50 x 11.8 x 5.0in (H x W x D)
1
Duty Rating
duty_rating
100% continuous
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
