Video & Media

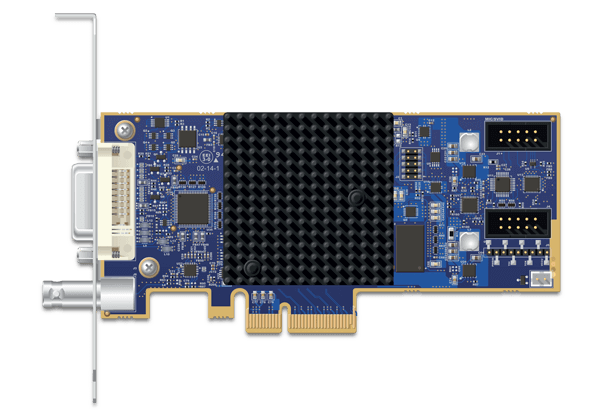

DVI2PCIe Duo

Manufacturer
Epiphan Video
Model
DVI2PCIe Duo
Code
GW-JUFJAG
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Dimensions
dimensions
140 x 64mm (low-profile short card)
1
Bus Interface
bus_interface
PCI Express 2.0 x4
1
Video inputs
video_inputs
1x SDI, 1x DVI-I dual-link / HDMI / VGA / Component
1
Max input resolution
input_resolution_max
2560x1600px (HDMI max 1920x1200)
1
Max frame rate
max_frame_rate_fps
60fps @ 1920x1200 (up to 85 fps lower res)
1
Color Formats
color_formats
RGB16/24/8, grayscale-256, YUY2, UYVY, YV12
1
Buffer Ram Mb
buffer_ram_mb
128MB
1
Audio
audio
SDI and HDMI embedded audio (analog via AV Kit)
1
Operating temperature
operating_temperature_c
up to 80C internal
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
