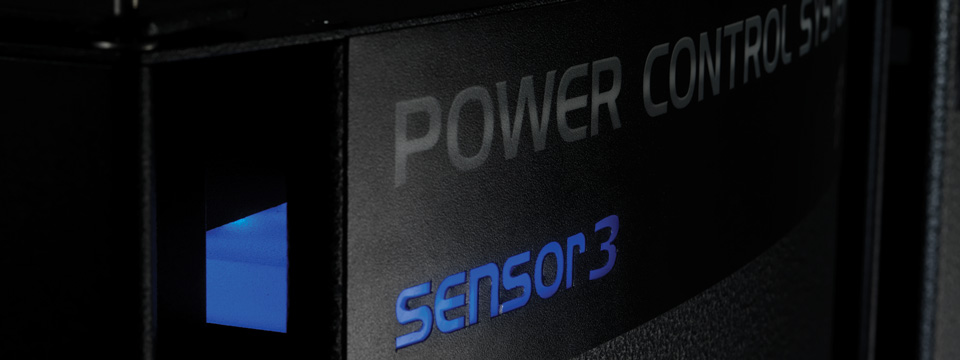

Sensor3 Dimmer Rack

Manufacturer
ETC
Model
Sensor3 Dimmer Rack
Code
GW-QZ7R4A
Data status
Level 1 / 5
AI-parsed

❋ Specs

18
Configurations Available
configurations_available
SR3-6 (6 modules, 12 dimmers), SR3-12 (12 modules, 24 dimmers), SR3-24 (24 modules, 48 dimmers), SR3-48 (48 modules, 96 dimmers)
1
Power Per Channel Kw
power_per_channel_kw
2.4
1
Frame material
frame_material
16-gage welded steel construction
1
Surface treatment
surface_treatment
Epoxy paint with matte, scratch-resistant coating
1
Input connectors
input_connectors
Cam-Lok (standard, others on request)
1
Dmx Inputs
dmx_inputs
2 DMX512-A inputs with termination switches
1
Networking
networking
Built-in Ethernet
1
Control Module
control_module
CEM3 (Control Electronics Module)
1
Bus Capacity
bus_capacity_a
400
1
Operating Temp Range C
operating_temp_range_c
0–40
1
Humidity Range Percent
humidity_range_percent
10–90 (non-condensing)
1
Noise Level Sr3 6 Dba
noise_level_sr3_6_dba
26.0 (without SSSh), 21.4 (with SSSh)
1
Noise Level Sr3 12 Dba
noise_level_sr3_12_dba
41.8 (without SSSh), 33.8 (with SSSh)
1
Noise Level Sr3 24 Dba
noise_level_sr3_24_dba
40.2 (without SSSh), 34.0 (with SSSh)
1
Noise Level Sr3 48 Dba
noise_level_sr3_48_dba
37.0 (without SSSh), 30.9 (with SSSh)
1
Certifications
certifications
UL, cUL (Underwriters Laboratories)
1
Cooling System
cooling_system
High-efficiency, low-noise cooling system, filtered air intake
1
Installation Tools Required
installation_tools_required
Not required
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
