✦Video & Media

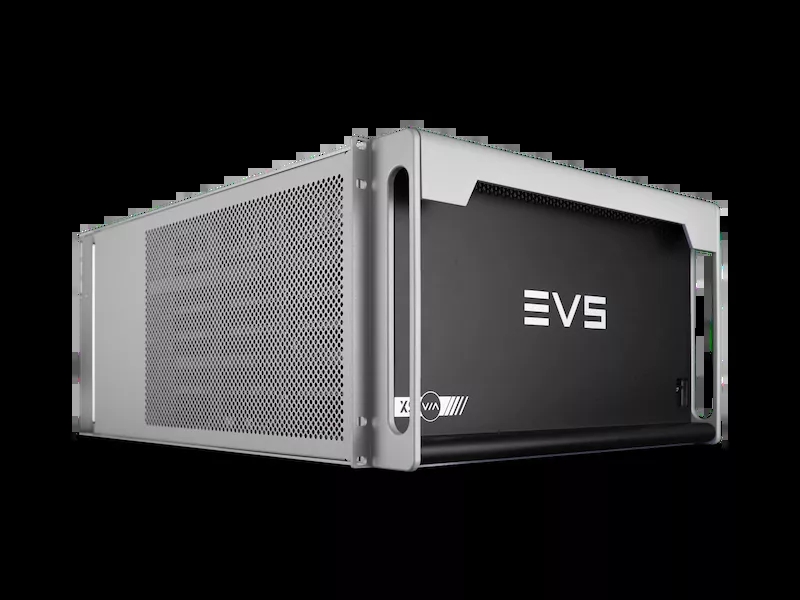

XS-VIA

Manufacturer
EVS Broadcast Equipment
Model
XS-VIA
Code
GW-M2K9FJ
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Hd Fhd Channels
hd_fhd_channels
12channels
1
Uhd 4K Channels
uhd_4k_channels
6channels
1
Fill Key Channels
fill_key_channels
6channels
1
Internal Storage Tb
internal_storage_tb
18 (expandable to 54)TB
1
Recording Capacity Uhd 4K H
recording_capacity_uhd_4k_h
up to 130 at 600Mbpshours
1
Audio Tracks
audio_tracks
192uncompressed tracks
1
Video codecs
video_codecs
XAVC-Intra, DNxHR, ProRes 4K, AVC-I, DNxHD
1
Network Ethernet
network_ethernet
10G SFP+ (100G optional)Gbps
1
Ip Standards
ip_standards
SMPTE ST2110 (-10/-20/-21/-30/-40), ST2022-6/-7/-8, NMOS IS-04/IS-05, PTP
1
SDI I/O
sdi_io
1.5G / 3G / 12G-SDI selectable
1
Multiviewer
multiviewer
embedded, 2 inputs / 4 outputs / 16 layouts
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
