✦Staging & Structures

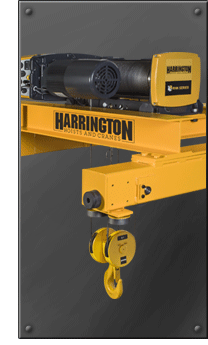

RHN20D

Manufacturer
Harrington Hoists
Model
RHN20D-20C-16D
Code
GW-7LEVVL
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Rated Capacity T
rated_capacity_t
20t
1
Rated Capacity Lb
rated_capacity_lb
40000lb
1
Lifting Speed High Low Fpm
lifting_speed_high_low_fpm
16/2.5ft/min
1
Motor Output High Low Hp
motor_output_high_low_hp
24.1/4.0hp
1
Rope Diameter
rope_diameter_mm
20mm
1
Reeving Parts
reeving_parts
4/1parts
1
Supply voltage
supply_voltage_v
208/230/460/575V 3ph 60Hz
1
Control voltage
control_voltage_v
110V 1ph 60Hz
1
Net Weight Lb
net_weight_lb
2271lb
1
Net weight
net_weight_kg
1030kg
1
Mounting
mounting
deck / base mounted, dual speed
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
