Lighting

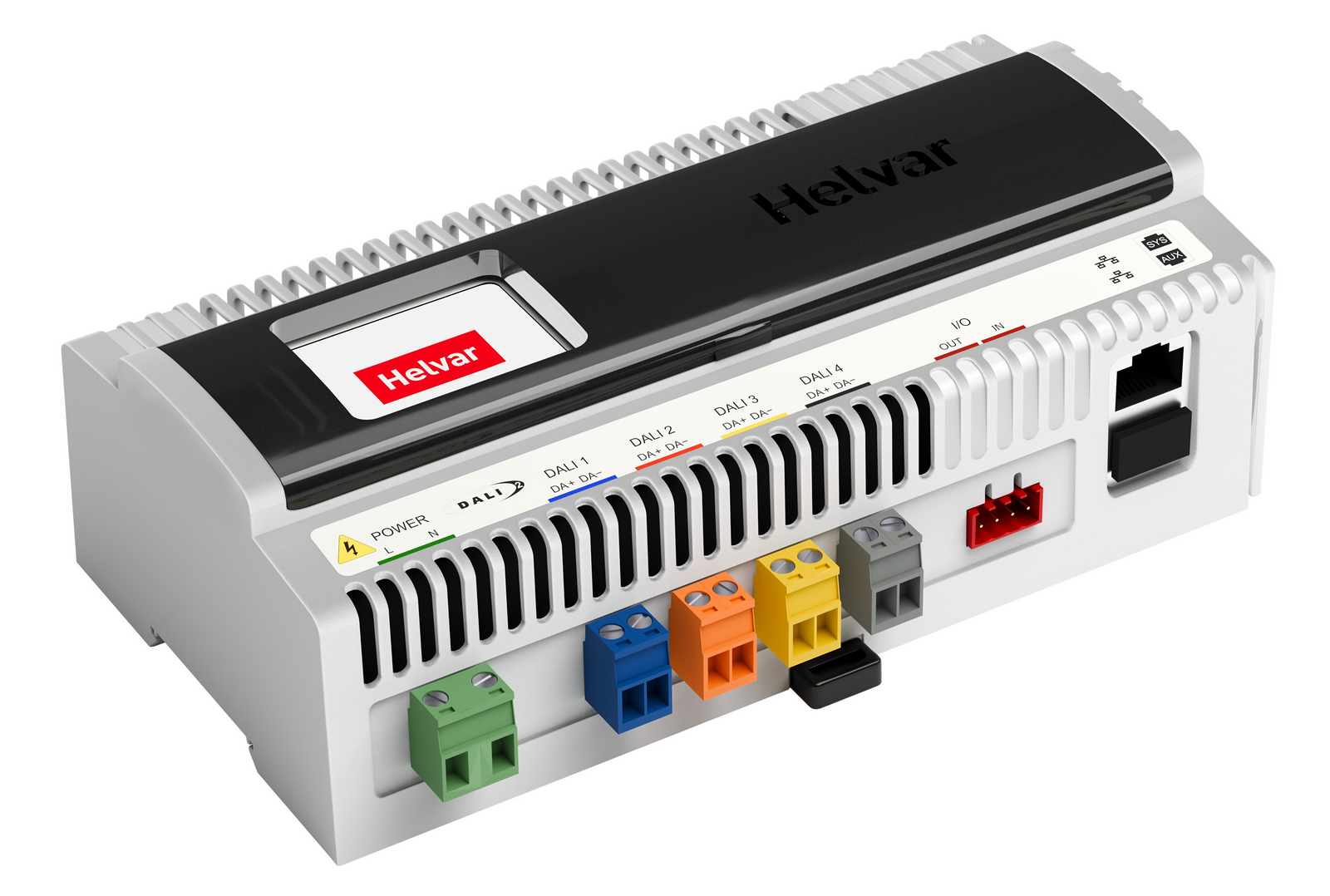

950 DALI-2 Multi-master Application Controller

Manufacturer
Helvar
Model
950
Code
GW-WEBXRZ
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Dali Subnets
dali_subnets
4
1
Lighting Control Protocol
lighting_control_protocol
DALI-2
1
Dali Bus Power Ma
dali_bus_power_ma
250mA
1
Ethernet Io
ethernet_io
yes
1
Supply Voltage Vac
supply_voltage_vac
198-264VAC
1
Frequency
frequency_hz
45-65Hz
1
Control Circuit Protection
control_circuit_protection
max 16 A Type C MCB
1
Dimensions
dimensions
177 x 99.5 x 58mm
1
Mounting Method
mounting_method
DIN rail
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
