✦Staging & Structures

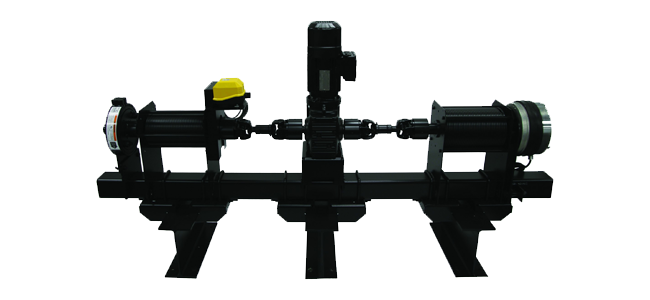

PowerLine

Manufacturer
J.R. Clancy
Model
PowerLine
Code
GW-MKPIYY
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Capacity Max
capacity_max_kg
1135kg
1
Max Capacity Lb
max_capacity_lb
2500lb
1
Max Load Per Line
max_load_per_line_kg
341kg
1
Fixed Speed Fpm
fixed_speed_fpm
20fpm
1
Variable Speed Fpm
variable_speed_fpm
0-240fpm
1
Variable Speed Ms
variable_speed_ms
0-1.2m/s
1
Max Travel
max_travel_m
18.3m
1
Max Travel Ft
max_travel_ft
60ft
1
Cable Diameter
cable_diameter
3/16 in or 1/4 inin
1
Drum Diameter
drum_diameter
5.5 in (3/16 cable) / 7.5 in (1/4 cable)in
1
Mounting Spacing
mounting_spacing
upright or underhung on 10 in (254 mm) spacing
1
Brake type
brake_type
integral brake + centrifugal load brake (optional SureBrake / overspeed)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
