✦Line Arrays

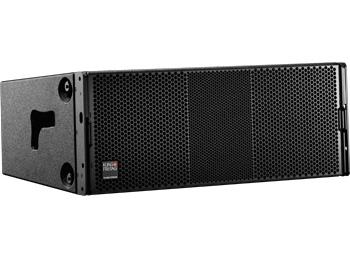

SEQUENZA 10 N

Manufacturer
Kling & Freitag
Model
SEQUENZA 10 N
Code
GW-KNTGJO
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Type
type
passive 2+1-way line array module with Waveformer
1
Frequency range
frequency_range_hz
44-22000Hz
1
Max SPL
max_spl_db
153 (4-unit array, peak)dB
1
Weight
weight_kg
34kg
1
Dimensions
dimensions
795 x 303 x 491mm
1
Drivers
drivers
2 x 10" LF, 3 x 1" HF (44 mm voice coil) + Waveformer
1
Horizontal coverage
horizontal_coverage_deg
77deg
1
Vertical coverage
vertical_coverage_deg
7deg
1
Power
power_w
300 nominal / 600 program / 1200 peak per chW
1
Impedance
impedance_ohm
12ohm
1
Connectors
connectors
2 x speakON 4-pin NLT4MP
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
