✦Line Arrays

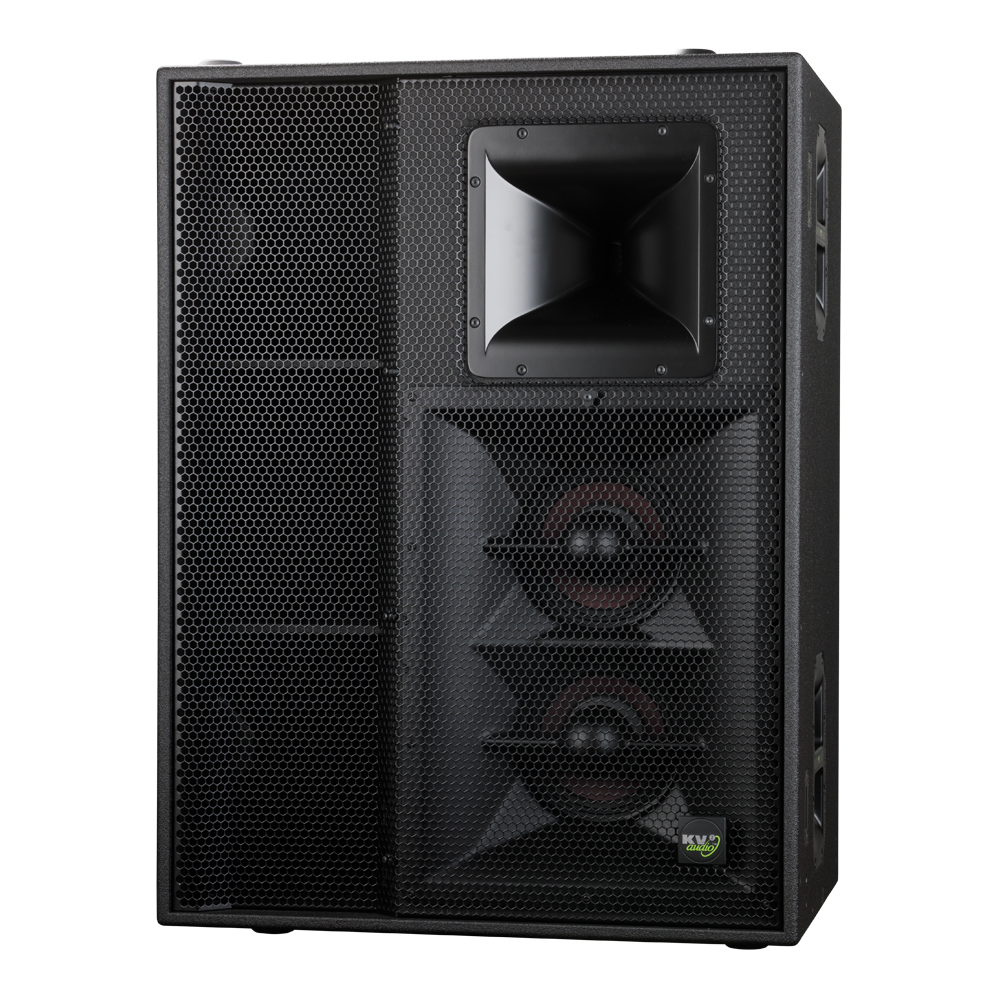

VHD2.0

Manufacturer
KV2 Audio
Model
KVV 987 077
Code
GW-EGIQIE
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Type
type
3-way active-driven mid-high enclosure
1
Frequency range
frequency_range_hz
100-22000Hz
1
Max SPL
max_spl_db
139dB
1
Peak SPL
max_spl_peak_db
145dB
1
Power
power_w
2000W
1
Dispersion
dispersion_deg
80 x 40deg
1
Crossover frequency
crossover_hz
100 / 450 / 2200Hz
1
Drivers
drivers
3in HF compression + 2x 8in mid + 2x 12in mid-bass
1
Dimensions
dimensions
933 x 700 x 495mm
1
Weight
weight_kg
70kg
1
Amplifier
amplifier
VHD 2000
1
Connector
connector
AP6 male
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
