✦Lighting

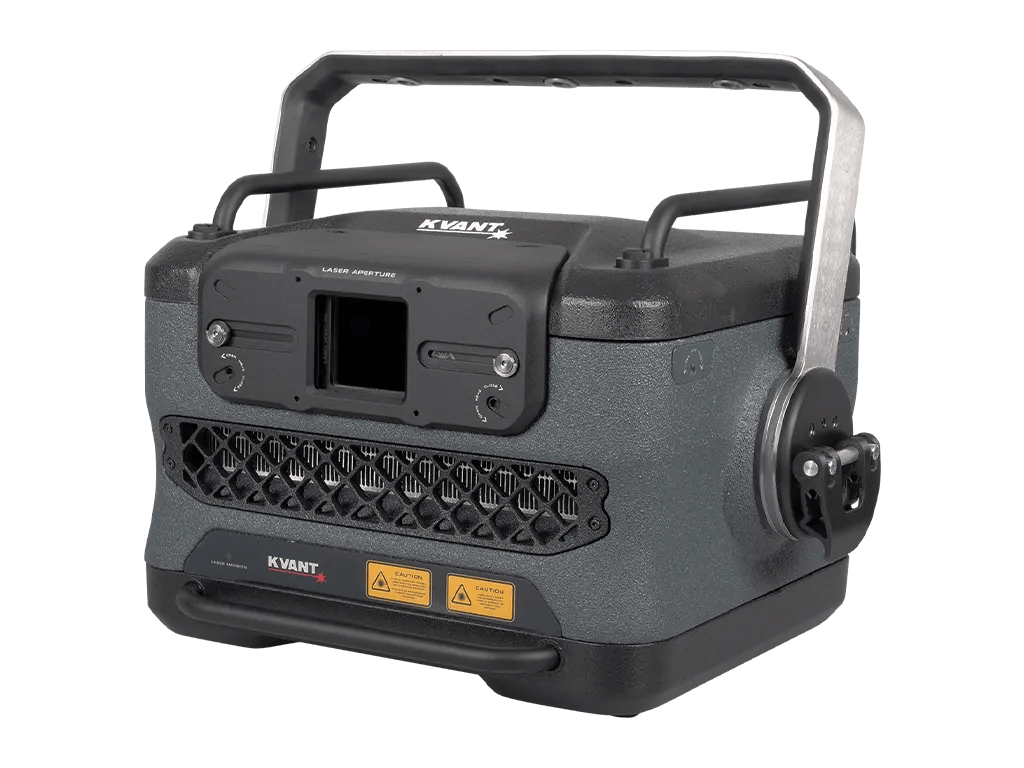

Spectrum 55 RYGB

Manufacturer
Kvant
Model
Spectrum 55 RYGB
Code
GW-PBJZVS
Data status
Level 1 / 5
AI-parsed

❋ Specs

14
Power
power_w
55W
1
Wavelength
wavelength_nm
637/577 OPSL/525/455 (R/Y/G/B)nm
1
Scan speed
scan_speed_kpps
30 @ 8°kpps
1
Scanning Angle Deg
scanning_angle_deg
40deg
1
Beam divergence
beam_divergence_mrad
0.8mrad
1
Weight
weight_kg
31kg
1
Dimensions
dimensions_mm
491x310x396 (WxHxD)mm
1
Power consumption
power_consumption_va
1200VA
1
Connectors
connectors
Neutrik powerCON TRUE1
1
Inputs
inputs
Ethernet, ArtNet, DMX512, ILDA (FB4-SK controller)
1
Colours
colours
RYGB (Red/Yellow/Green/Blue, full-colour)
ILDA
ilda
Yes (ILDA in/out, Ethernet, ArtNet, DMX)
Laser power
laser_power_mw
55000mW
Safety class
safety_class
Class 4 (EN/IEC 60825-1)

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
