✦Lighting

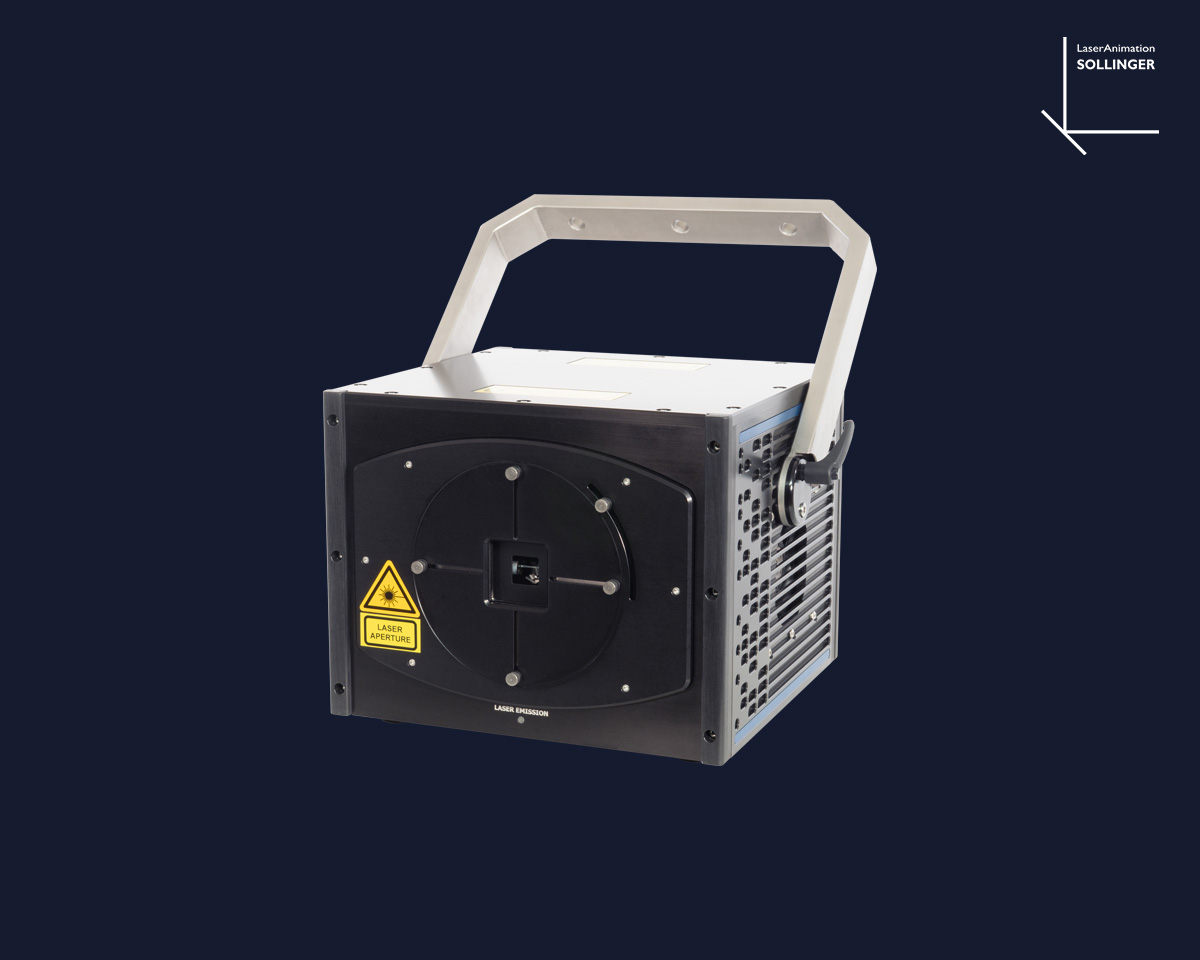

PHAENON XS 30

Manufacturer
LaserAnimation Sollinger
Model
PHAENON XS 30
Code
GW-LCDSX7
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Guaranteed Optical Output
guaranteed_optical_output_w
34W
1
Min Power At Aperture
min_power_at_aperture_w
30W
1
Power R
power_r_w
9.6W
1
Power G
power_g_w
11.6W
1
Power B
power_b_w
15W
1
Wavelengths Rgb Nm
wavelengths_rgb_nm
637 / 525 / 455nm
1
Scan speed
scan_speed_kpps
45 @ 8° (60 with CT-6210)kpps
1
Scan angle
scan_angle_deg
50°
1
Beam diameter
beam_diameter_mm
5mm
1
Beam divergence
beam_divergence_mrad
0.7mrad
1
Weight
weight_kg
20kg
1
Dimensions
dimensions
289 x 296 x 233 (LxWxH)mm
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
