Video & Media

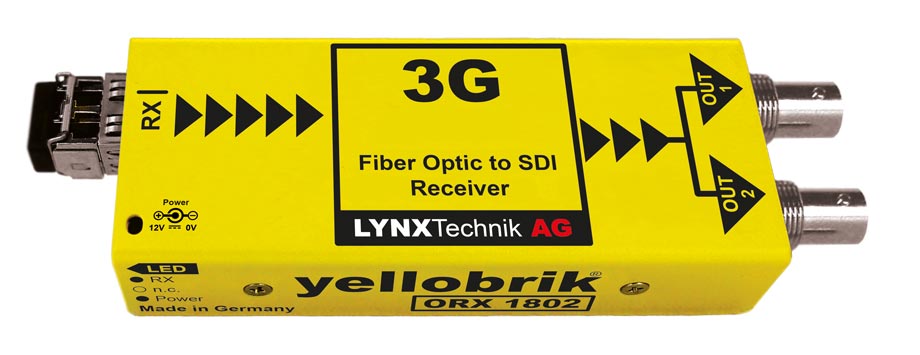

ORX 1802

Manufacturer
LYNX Technik
Model
ORX 1802
Code
GW-UNFAJC
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
SDI standards
sdi_standards
SMPTE 424M/292M/259M, DVB-ASI, up to 3Gbit/s
1
SDI outputs
sdi_outputs
2x reclocked SDI on 75 Ohm BNC
1
Reclocking
reclocking
auto 270Mbit / 1.48Gbit / 2.97Gbit
1
Wavelength Range Nm
wavelength_range_nm
1260 to 1620 (singlemode)nm
1
Rx Sensitivity Dbm
rx_sensitivity_dbm
-3 to -19dBm
1
Fiber Connector
fiber_connector
LC / ST / SC (SMF), MMF version available
1
Cwdm Compatible
cwdm_compatible
yes
1
Power Supply Vdc
power_supply_vdc
12 (range 7-16)V DC
1
Dimensions
dimensions
140 x 42 x 22mm
1
Weight
weight_g
125g
1
EAN
ean
4250479359697
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
