✦Lighting

ORION

Manufacturer
Madrix
Model
ORION
Code
GW-QQ44R6
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Analog Inputs
analog_inputs
8input
1
Input voltage range
input_voltage_range_v
0-12 measurable / 0-24 permissibleV
1
Resolution
resolution
8-bit or 16-bit DMX output
1
Dmx Channels Mapped
dmx_channels_mapped
8 or 16channel
1
Connectors
connectors
2x 6-pin pluggable screw terminals
1
Output Protocols
output_protocols
Art-Net (I/II/3/4), sACN (E1.31)
1
Ethernet ports
ethernet_ports
2x RJ45, 10/100 Mbit/s, daisy-chain
1
Power supply voltage
power_supply_v
5-24 (DC)V
1
Power
power_w
1.5W
1

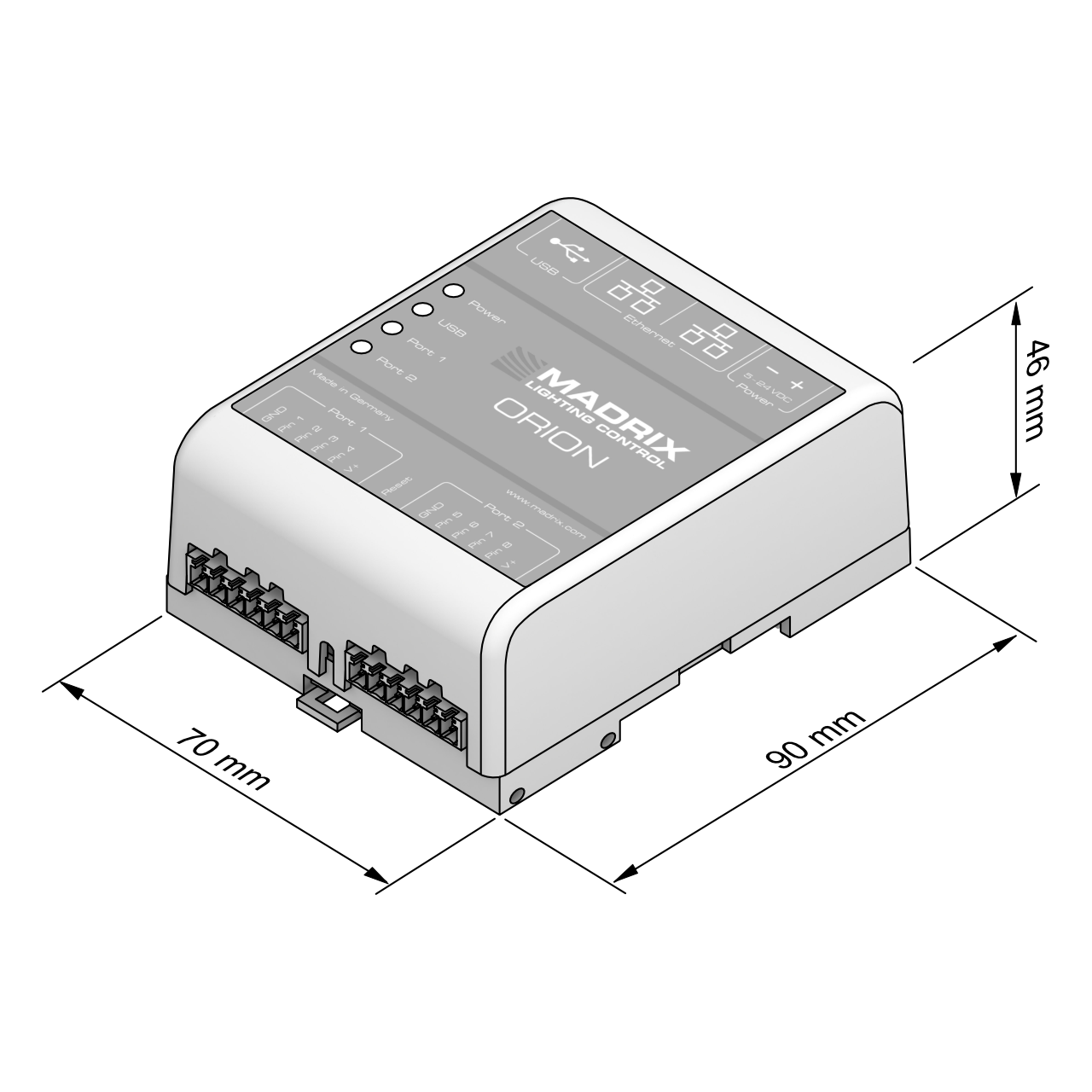

Dimensions
dimensions
90 x 70 x 46mm
1
Weight
weight_kg
0.105kg
1
Operating temperature
operating_temperature_c
-10 to 70degC
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
