✦Line Arrays

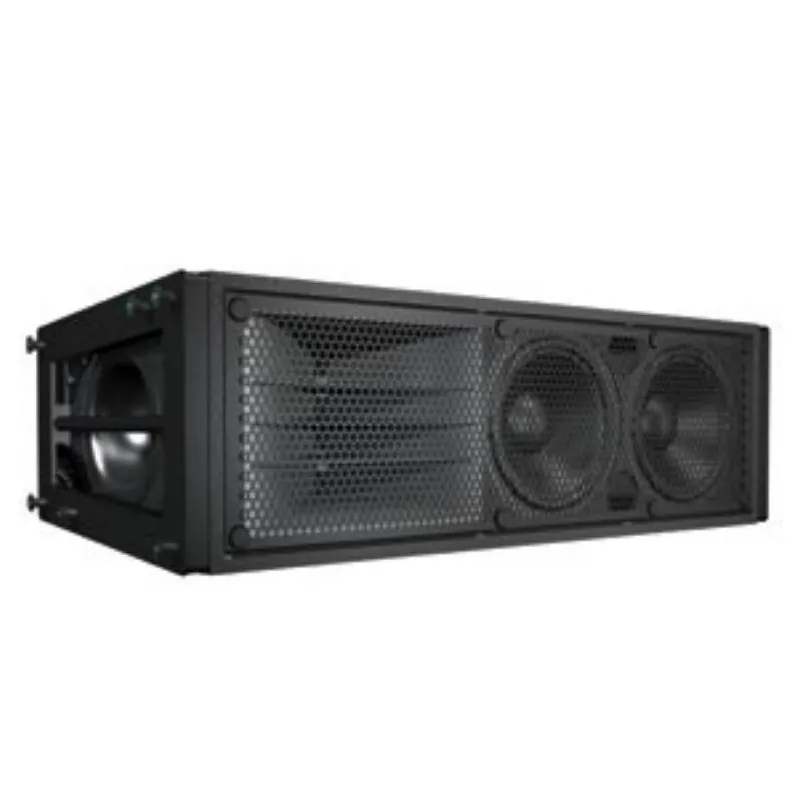

M2D

Manufacturer
Meyer Sound
Model
04.112.011.01 B
Code
GW-VG0NZH
Data status
Level 1 / 5
AI-parsed

❋ Specs

13
Configuration
configuration
self-powered, biamplified compact curvilinear (line) array
1
Drivers
drivers
2x 10" cone LF drivers (neodymium) + 1x 4" compression driver (1.5" exit) on 90 deg constant-directivity horn with REM manifold
1
Amplifier
amplifier
Class AB/bridged MOSFET, 700 W burst
1
Power
power_w
700W
1
Max SPL
max_spl_db
136dB SPL @ 1 m
1
Operating Frequency Range Hz
operating_frequency_range_hz
60-16000Hz
1
Frequency range
frequency_range_hz
70-14000 (+/-4 dB)Hz
1
Crossover frequency
crossover_frequency_hz
575Hz
1
Horizontal coverage
horizontal_coverage_deg
90deg
1
Weight
weight_kg
52.62kg
1
Dimensions
dimensions
991 x 308 x 444 (W x H x D)mm
1
Max Array Size
max_array_size
up to 16 cabinets (1-7 deg splay)
1
Amplification
amplification
Self-powered (built-in amplifier)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
