✦Point Source / Full-Range

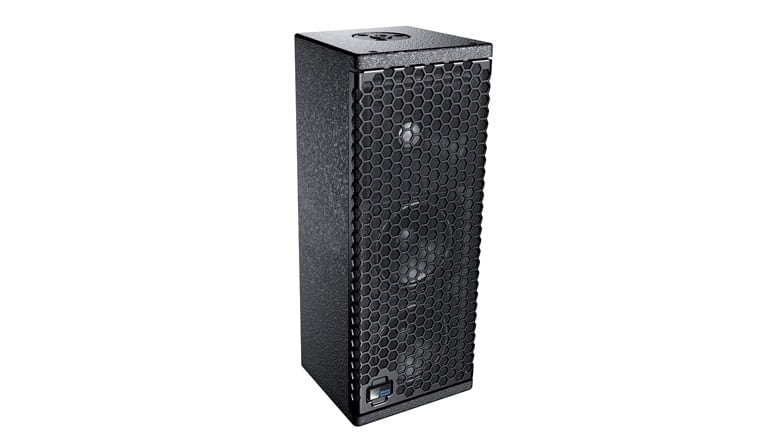

UP-4XP

Manufacturer
Meyer Sound
Model
UP-4XP
Code
GW-M8YR4W
Data status
Level 1 / 5
AI-parsed

❋ Specs

13
Weight
weight_kg
5.53kg
1
Dimensions
dimensions
352 x 141 x 133mm
1
Max SPL
max_spl_db
117.5dB
1
Frequency range
frequency_range_hz
66 - 18000Hz
1
Drivers
drivers
Two 4-inch low-frequency cone drivers + one 1-inch metal dome tweeter
1
Configuration
configuration
3-way self-powered (IntelligentDC), active crossover
1
Amplifier
amplifier
3-channel Class-D, 500 W peak total
1
Power
power_w
500W
1
Dispersion
dispersion_deg
100 x 100 (H x V)deg
1
Frequency range
frequency_range_hz
72 - 17500 (±4 dB)Hz
1
Connectors
connectors
Phoenix or SwitchCraft EN3 5-pin male
1
Enclosure
enclosure
Premium multi-ply birch, textured black finish
1
Amplification
amplification
Self-powered (built-in amplifier)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers

Self-powered (built-in amplifier)
