✦Point Source / Full-Range

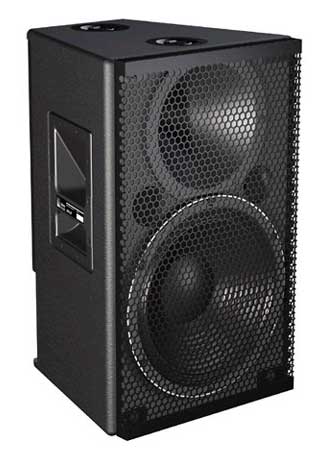

UPA-2P

Manufacturer
Meyer Sound
Model
UPA-2P
Code
GW-QPEQED
Data status
Level 1 / 5
AI-parsed

❋ Specs

14
Configuration
configuration
self-powered 2-way, vented trapezoidal enclosure
1
Drivers
drivers
one 12-inch cone LF driver + one 3-inch compression HF driver on 45 deg symmetrical conic horn
1
Frequency range
frequency_range_hz
80-17000 (+/-4 dB)Hz
1
Operating Frequency Range Hz
operating_frequency_range_hz
60-18000Hz
1
Max SPL
max_spl_db
132.5 (M-noise, 18 dB crest factor)dB
1
Horizontal coverage
horizontal_coverage_deg
45deg
1
Vertical coverage
vertical_coverage_deg
45deg
1
Amplifier
amplifier
two-channel class AB/bridged, complementary MOSFET output stages
1
Power
power_w
1000W peak
1
Dimensions
dimensions
368 x 569 x 363 (W x H x D)mm
1
Weight
weight_kg
34.93kg
1
Audio input
audio_input
XLR 3-pin female input with male loop output, electronically balanced
1
Ac Power
ac_power
PowerCON 20, auto voltage selection 90-265 V AC (safety rated 100-240 V AC, 50-60 Hz)
1
Amplification
amplification
Self-powered (built-in amplifier)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers

Self-powered (built-in amplifier)
