✦Point Source / Full-Range

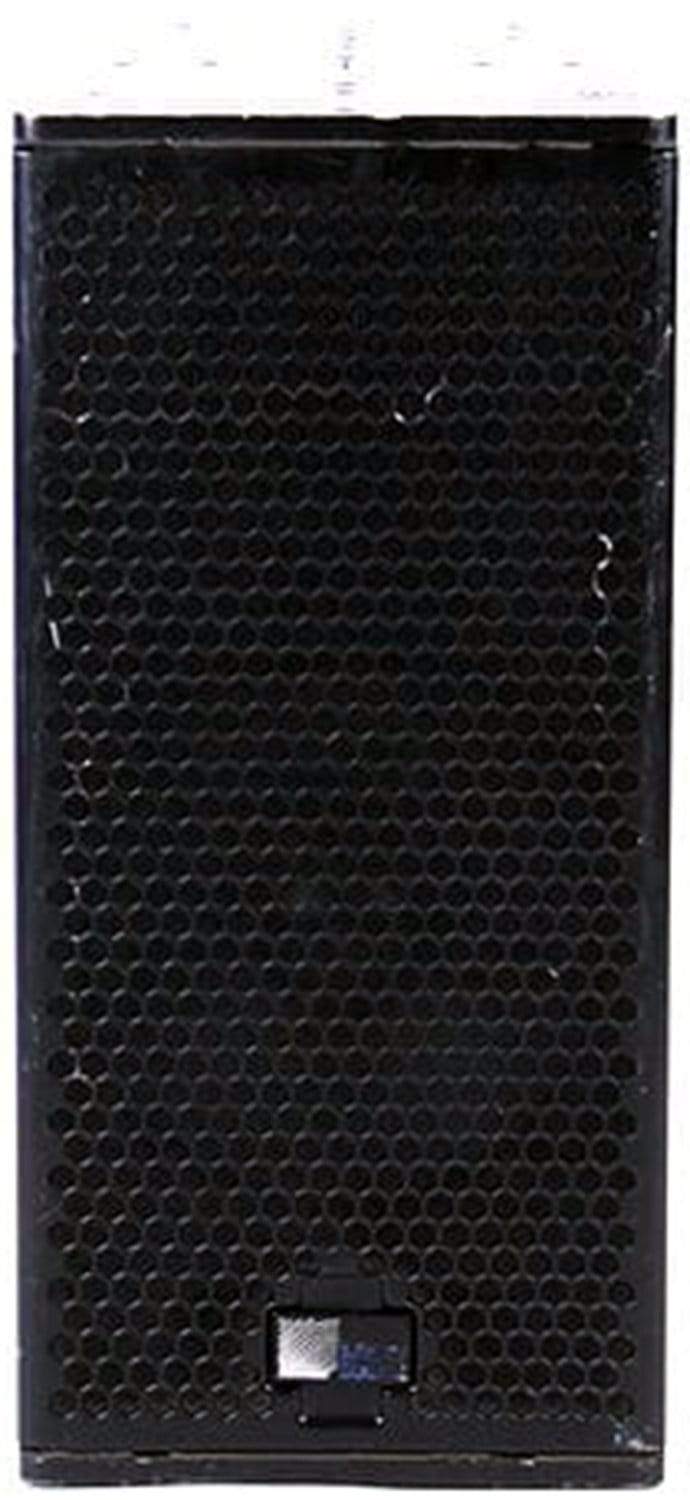

UPJunior

Manufacturer
Meyer Sound
Model
UPJunior
Code
GW-F1ELAT
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Configuration
configuration
two-way active (self-powered)
1
Drivers
drivers
8" neodymium LF cone driver (1.5" voice coil) + 0.75"-exit / 2"-diaphragm HF compression driver
1
Max SPL
max_spl_db
126dB SPL @ 1 m (peak)
1
Dispersion
dispersion_deg
80 x 50 (rotatable VariO horn)degrees
1
Amplifier
amplifier
proprietary two-channel class AB / bridged with onboard DSP, electronic crossover and limiters
1
Power
power_w
300W total burst power
1
Weight
weight_kg
12.7kg
1
Dimensions
dimensions
228.60 x 483.55 x 259.08 (W x H x D)mm
1
Enclosure
enclosure
premium birch plywood
1
Rigging
rigging
QuickFly with 6061-T6 aluminium end plates, M8 threaded attachment points
1
Power supply
power_supply
Intelligent AC, auto-ranging worldwide line voltage with soft turn-on and transient protection
1
Amplification
amplification
Self-powered (built-in amplifier)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers

Self-powered (built-in amplifier)
