✦Point Source / Full-Range

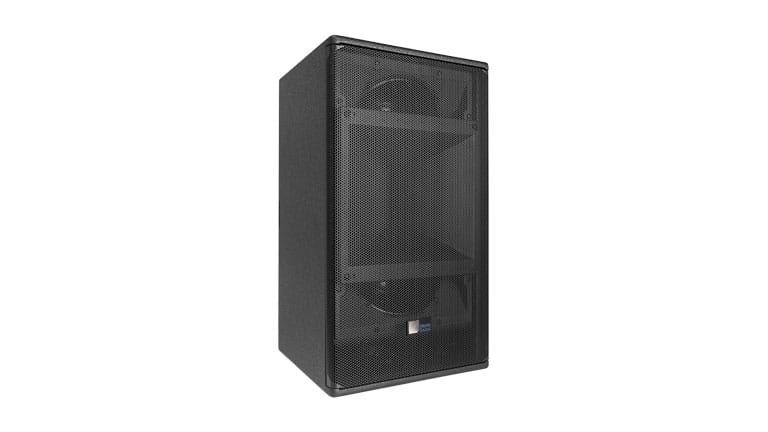

UPQ-D3

Manufacturer
Meyer Sound
Model
UPQ-D3
Code
GW-TENI3M
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Configuration
configuration
2-way self-powered
1
Drivers
drivers
One 15-inch neodymium cone driver (LF) + one 4-inch diaphragm compression driver (HF)
1
Frequency range
frequency_range_hz
55-18000Hz
1
Max SPL
max_spl_db
135dB
1
Dispersion
dispersion_deg
80° H x 80° V (-6 dB)
1
Amplifier
amplifier
Two-channel Class-D
1
Power
power_w
2250W
1
Weight
weight_kg
43kg
1
Dimensions
dimensions
715 x 483 x 462 (H x W x D)mm
1
Amplification
amplification
Self-powered (built-in amplifier)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

❋ Compatibility

Amplifiers

Self-powered (built-in amplifier)
