✦Truss: Straight / Corners

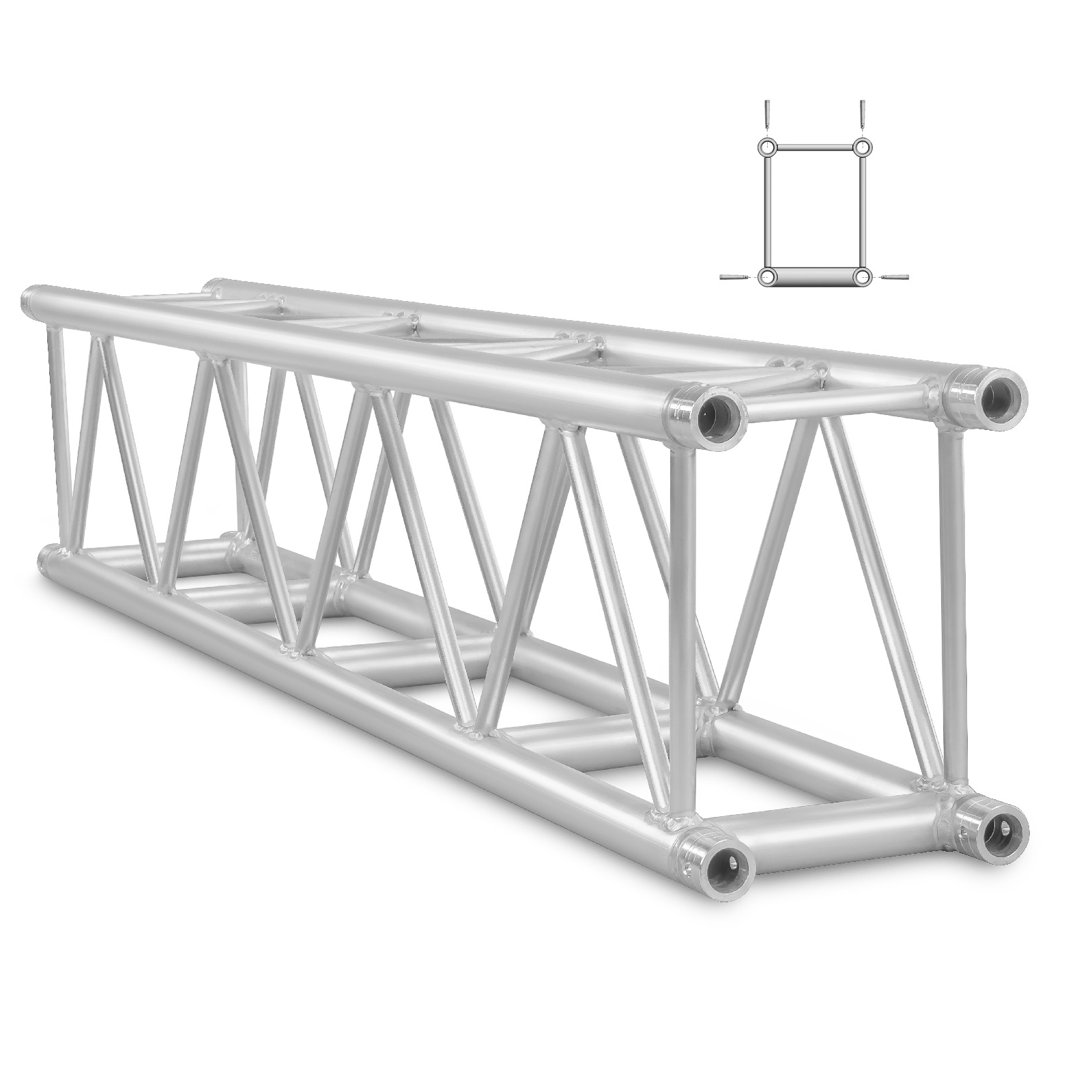

M290 Quatro

Manufacturer
Milos Structural Systems
Model
QTB / QTF (M290 Quatro Regular)
Code
GW-CCSH3Z
Data status
Level 1 / 5
AI-parsed

❋ Specs

12
Cross section
cross_section_mm
290 x 290mm
1
Main Chord Tube
main_chord_tube
50 x 2mm
1
Diagonal Brace Tube
diagonal_brace_tube
16 x 2mm
1
Alloy
alloy
EN AW-6082 T6
1
Connection type
connection_type
conical coupler (CCB / CCF) with pin & clip
1
Weight per meter
weight_kg_per_m
5.3kg/m
1
Section Weight 2M
section_weight_2m_kg
10.6kg
1
Max span
max_span_m
20m
1
Center Point Load At 6M
center_point_load_at_6m_kg
442.5kg
1
Available Lengths
available_lengths
0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5m
1
Profiles
profiles
Duo / Trio / Quatro, Regular & Heavy-Duty
1
Clamp Compatibility
clamp_compatibility
Cell clamp 200/400/500/600 series
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.

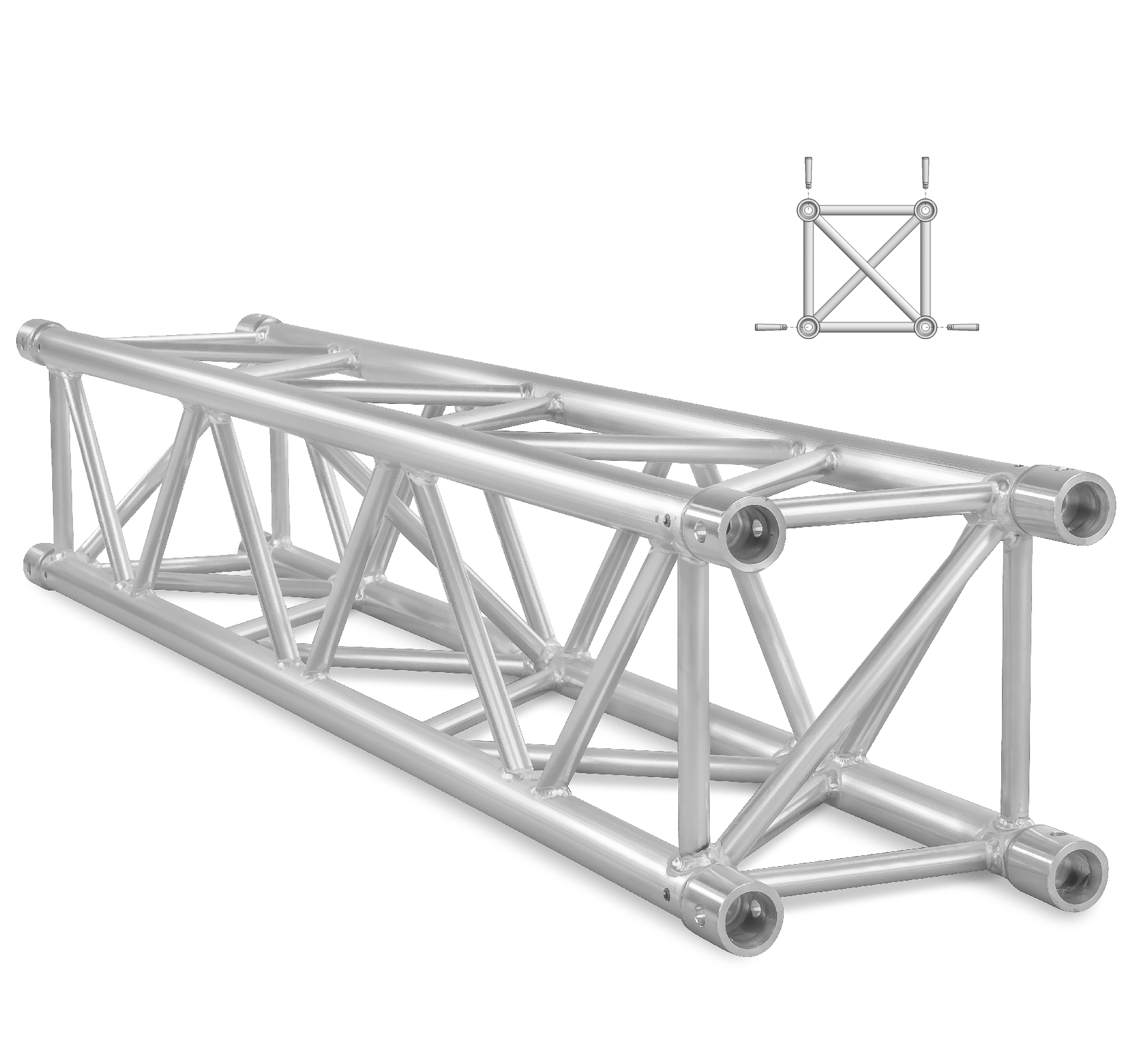

❋ Similar items
