Video & Media

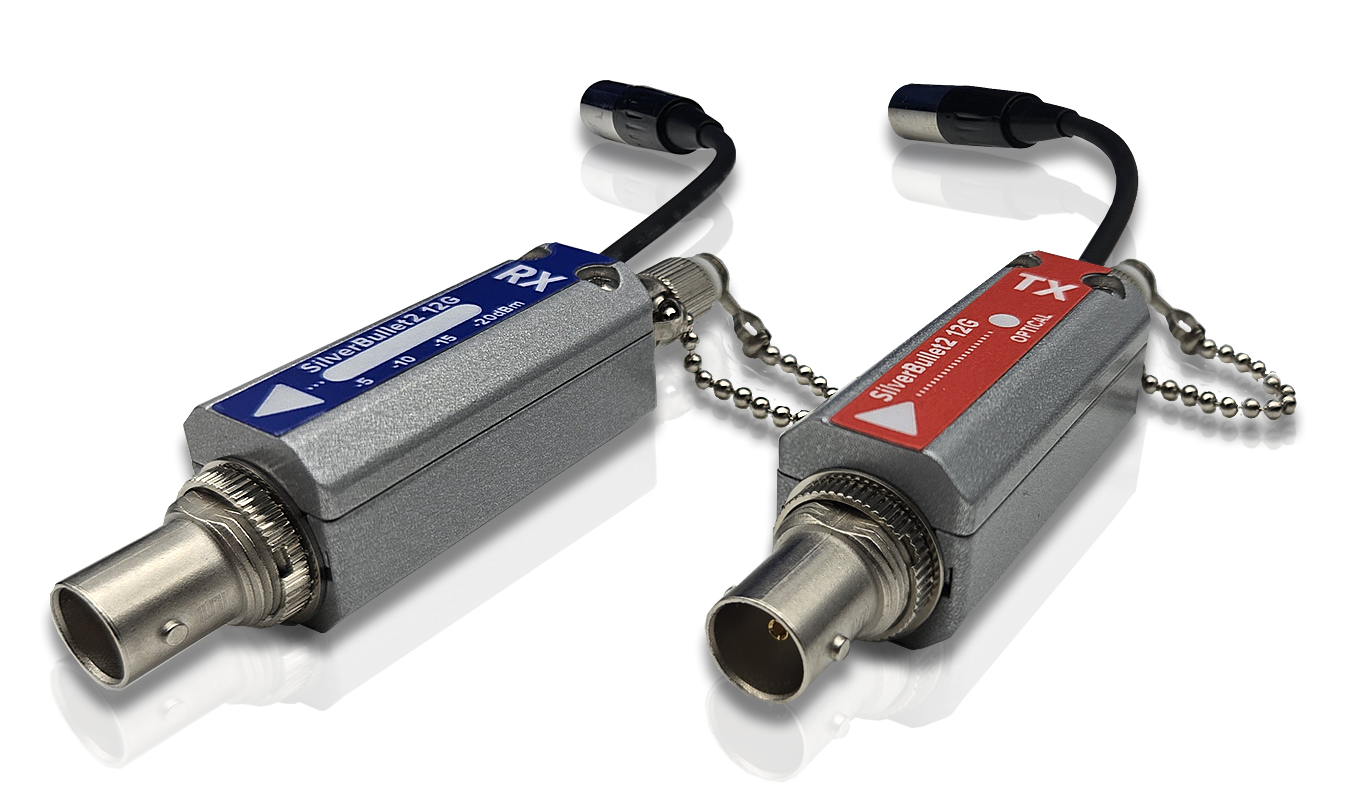

SilverBULLET 12G

Manufacturer
MultiDyne
Model
SB-12G-FRX-ST / SB-12G-FTX-ST
Code
GW-MWRCUO
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Data Rate Range
data_rate_range
5 Mbps to 12 Gbps
1
Video formats
video_formats
12G/6G/3G/HD/SD-SDI
1
Fiber Type
fiber_type
single-mode
1
Optical Connector
optical_connector
ST-type (metallic)
1
Sdi Connector
sdi_connector
full-size BNC
1
Optical Launch Power Dbm
optical_launch_power_dbm
-3 (standard); 0 (CWDM)dBm
1
Receiver Sensitivity Dbm
receiver_sensitivity_dbm
-14 @ 12G; -18 @ 3GdBm
1
Max Distance Km
max_distance_km
25km
1
Power Input Vdc
power_input_vdc
5-16VDC
1
Length In
length_in
3in
1
Cwdm Wavelengths
cwdm_wavelengths
16 available
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
