✦Line Arrays

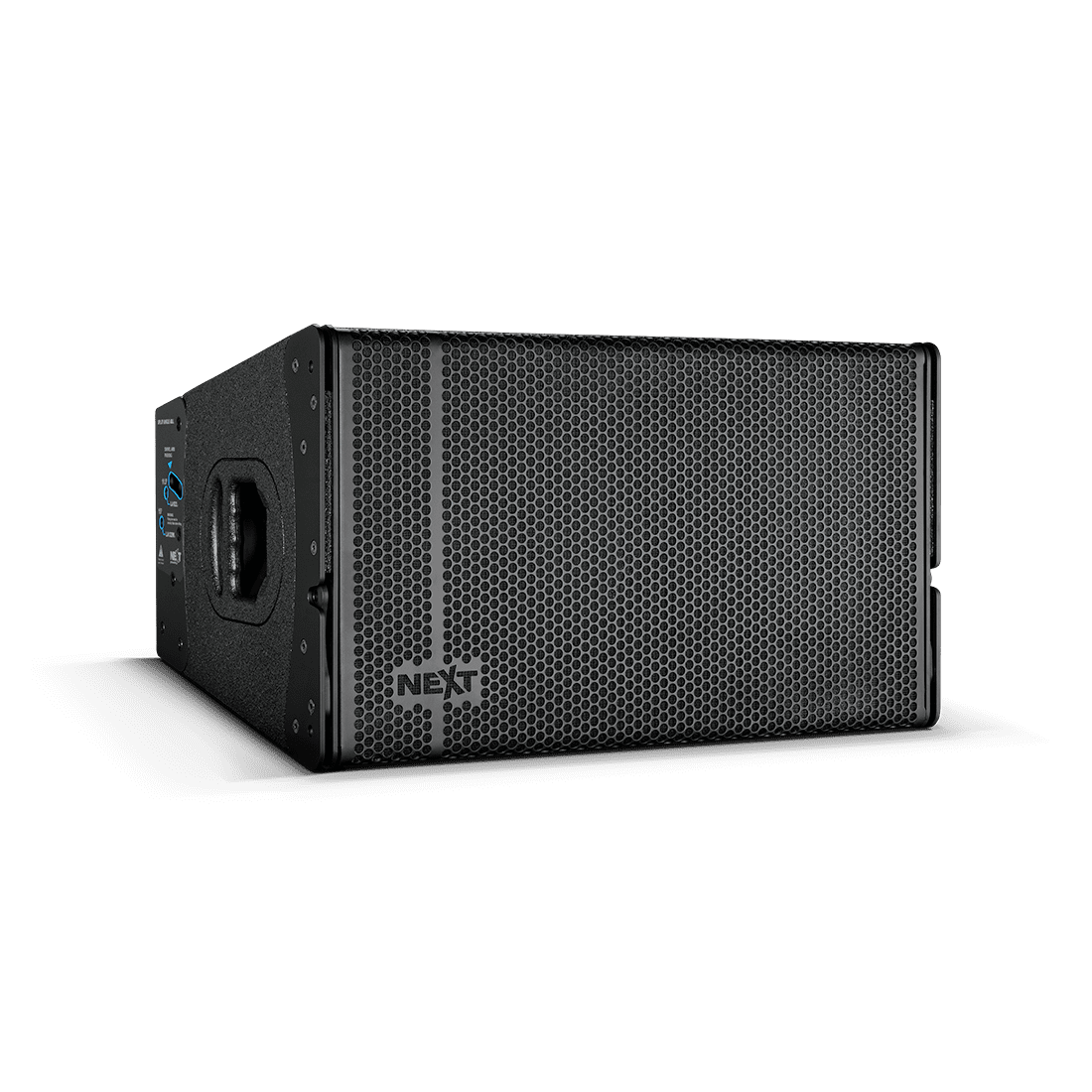

LA122WA

Manufacturer
NEXT Audiogroup
Model
LA122WA
Code
GW-NZI2EE
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Type
type
2-way wide active line array element
1
Frequency range
frequency_range_hz
58-19000Hz
1
Max SPL
max_spl_db
134.5dB (peak, calc.)
1
Program power
power_program_w
2220W (combined program)
1
Dispersion
dispersion_deg
120 x 15deg (H x V)
1
LF driver
lf_driver
1 x 12" B&C neodymium (76mm VC)
1
HF driver
hf_driver
2 x 1.4" B&C compression (65mm VC)
1
Weight
weight_kg
35.6kg
1
Dimensions
dimensions
602 x 350 x 465mm (W x H x D)
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
