✦Power

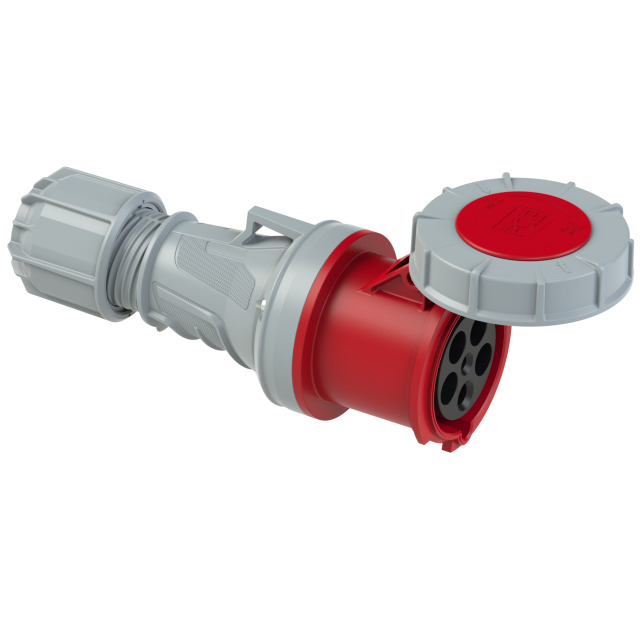

POWER TWIST CEE-connector 63A 5p 6h IP67 (235-6)

Manufacturer
PCE
Model
235-6
Code
GW-QGFX5I
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Rated current
rated_current_a
63A
1
Poles
poles
5 (3P+N+PE)
1
Rated voltage
rated_voltage_v
400V AC
1
Frequency range
frequency_range_hz
50/60Hz
1
Clock position
clock_position_h
6h
1
Conductor cross-section
conductor_cross_section_mm2
6-16mm2
1
Cable diameter
cable_diameter_mm
14.5-36mm
1
Weight
weight_kg
0.78kg
1
Housing material
housing_material
PA6 polyamide
1
Contact material
contact_material
brass, nickel-plated, CuBe lamellar spring
1
Standard
standard
IEC/EN 60309-2
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
