✦Power

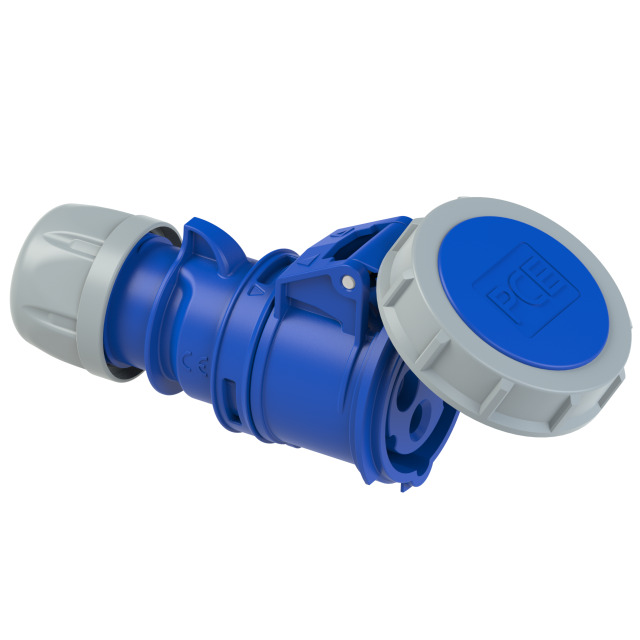

SHARK CEE-connector 16A 3p 6h IP67 (2132-6)

Manufacturer
PCE
Model
2132-6
Code
GW-6DOPJH
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Rated current
rated_current_a
16A
1
Poles
poles
3 (2P+PE)
1
Rated voltage
rated_voltage_v
230V AC
1
Frequency range
frequency_range_hz
50/60Hz
1
Clock position
clock_position_h
6h
1
Conductor cross-section
conductor_cross_section_mm2
1-2.5mm2
1
Cable diameter
cable_diameter_mm
6-15mm
1
Housing material
housing_material
PA6 polyamide
1
Contact material
contact_material
brass (CuZn)
1
Standard
standard
IEC/EN 60309-2
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
