✦Power Distros

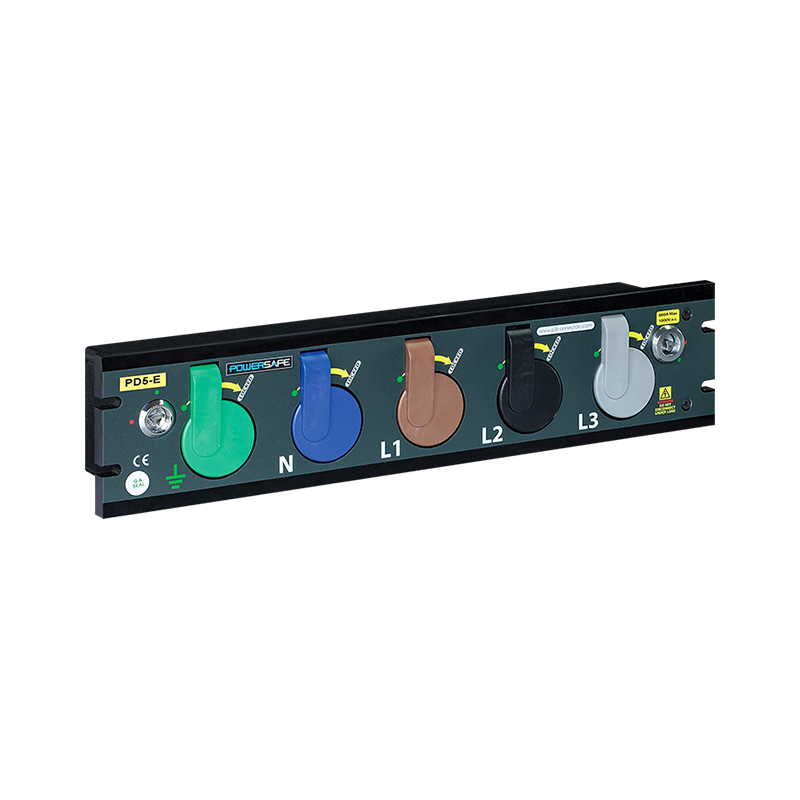

Powersafe Power Distribution Box (Sequential Mating Box)

Manufacturer
Phase 3 Connectors
Model
Powersafe Powerlock Box / Sequential Mating Box
Code
GW-ZRB9OW
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Max current
max_current_a
800A
1
Max Voltage To Earth
max_voltage_to_earth_v
2000V AC
1
Micro Switch Rating
micro_switch_rating
250VAC / 3A
1
Port Configuration
port_configuration
5 port or 4 port (no neutral)
1
Panel Height
panel_height
2U (88mm) or 4U (108mm)mm
1
Dimensions
dimensions
483 (W) x 130 (D), 88 or 108 (H)mm
1
Weight
weight_kg
5.51kg
1
Temperature range
temperature_range_c
-30 to +85°C
1
Rear Terminals
rear_terminals
M12 x 25 threaded studs
1
Locking System
locking_system
Sequential mating (FMLB), mechanically keyed, colour-coded
1
Certifications
certifications
UL (E483242), VDE (40049154), ISO 9001:2015, RoHS, NACE
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
