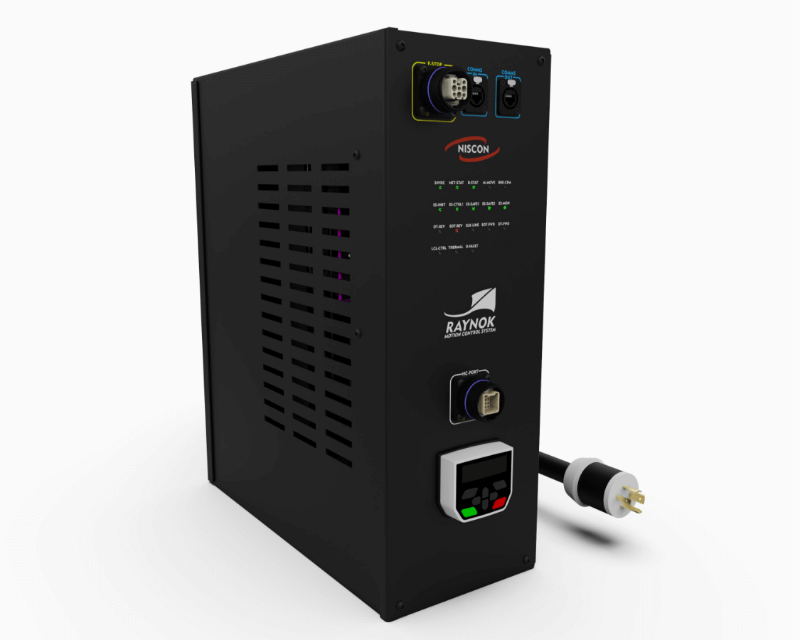

MMDM Drive Panel

Manufacturer
Raynok
Model
MMDM
Code
GW-RZ5VA3
Data status
Level 1 / 5
AI-parsed

❋ Specs

11
Controlled Axes
controlled_axes
1 variable-speed induction or servo
1
Power input
power_input_v
200-230 / 400-480, 3-phaseV
1
Frequency
frequency_hz
50/60Hz
1
Drive Size Kw
drive_size_kw
1.5-7.5kW
1
Drive Model
drive_model
Control Techniques M702, SEW Movidrive B
1
Encoder Types
encoder_types
TTL, HTL, SIN/COS, SSI Grey Code
1
Motion Controller
motion_controller
1 x SN102
1
Dimensions
dimensions
190 x 530 x 430 (7.5"W x 21"H x 17"D)mm
1
Weight
weight_kg
18-32kg
1
Mounting
mounting
4 points (top, bottom, back) — mounts on hoist frame
1
Approvals
approvals
CSA/US Field Evaluation
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
