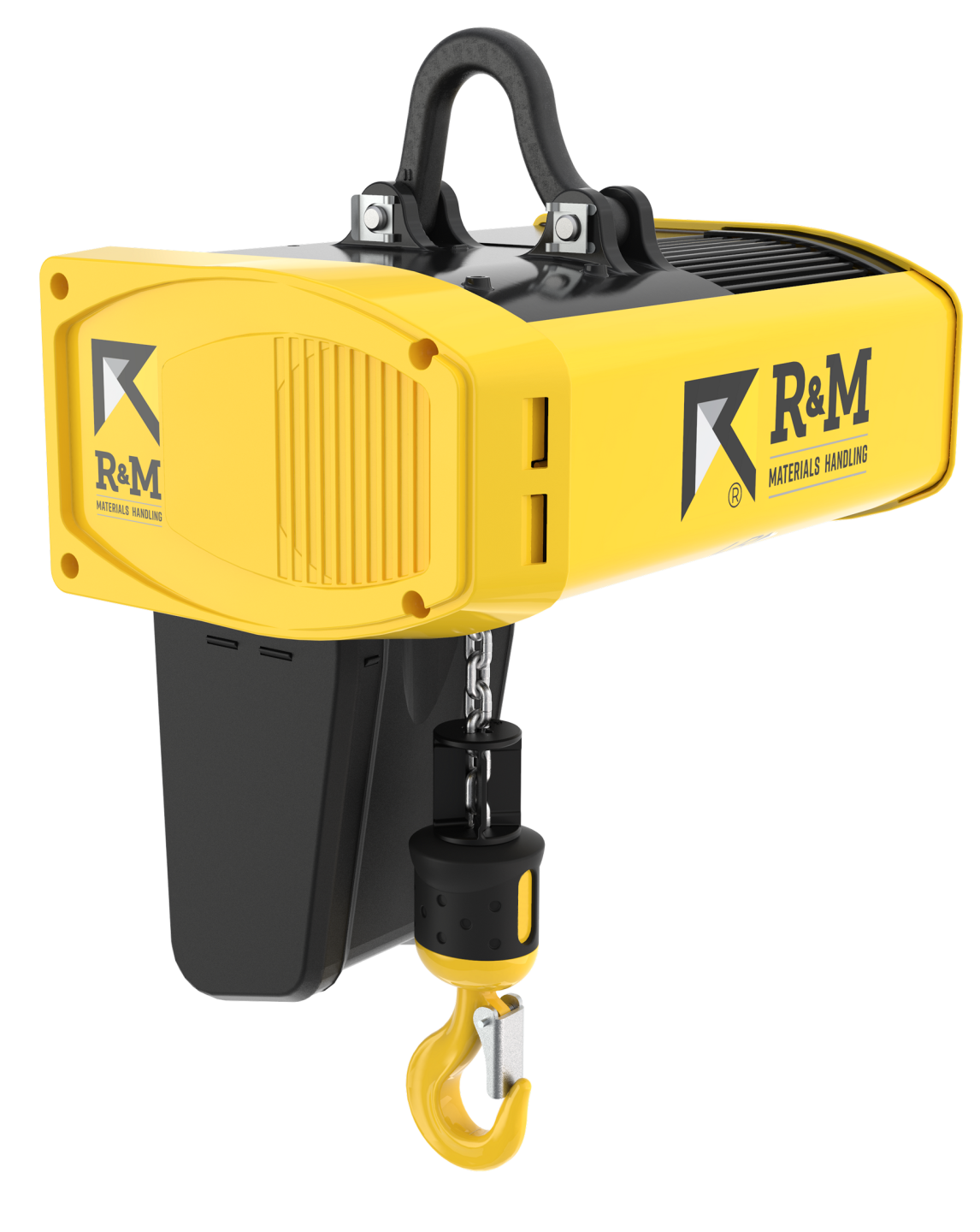

LR Electric Chain Hoist

Manufacturer
R&M Materials Handling
Model
LR
Code
GW-SGTZGY
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Capacity Ton
capacity_ton
0.125-2ton
1
Capacity (WLL)
capacity_kg
125-2000kg
1
Standard lift
standard_lift_m
3/4.5/6m
1
Speed Ratio
speed_ratio
4:1 two-speed (or single-speed 460V-3ph-60Hz)
1
Load Chain
load_chain
zinc-plated case-hardened (DAT)
1
Operating temperature
operating_temperature_c
-20 to 40C
1
Overload Setting
overload_setting
110 (clutch)% rated
1
Load Test
load_test
125% rated
1
Gearing
gearing
helical, lifetime lubrication
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
