Staging & Structures

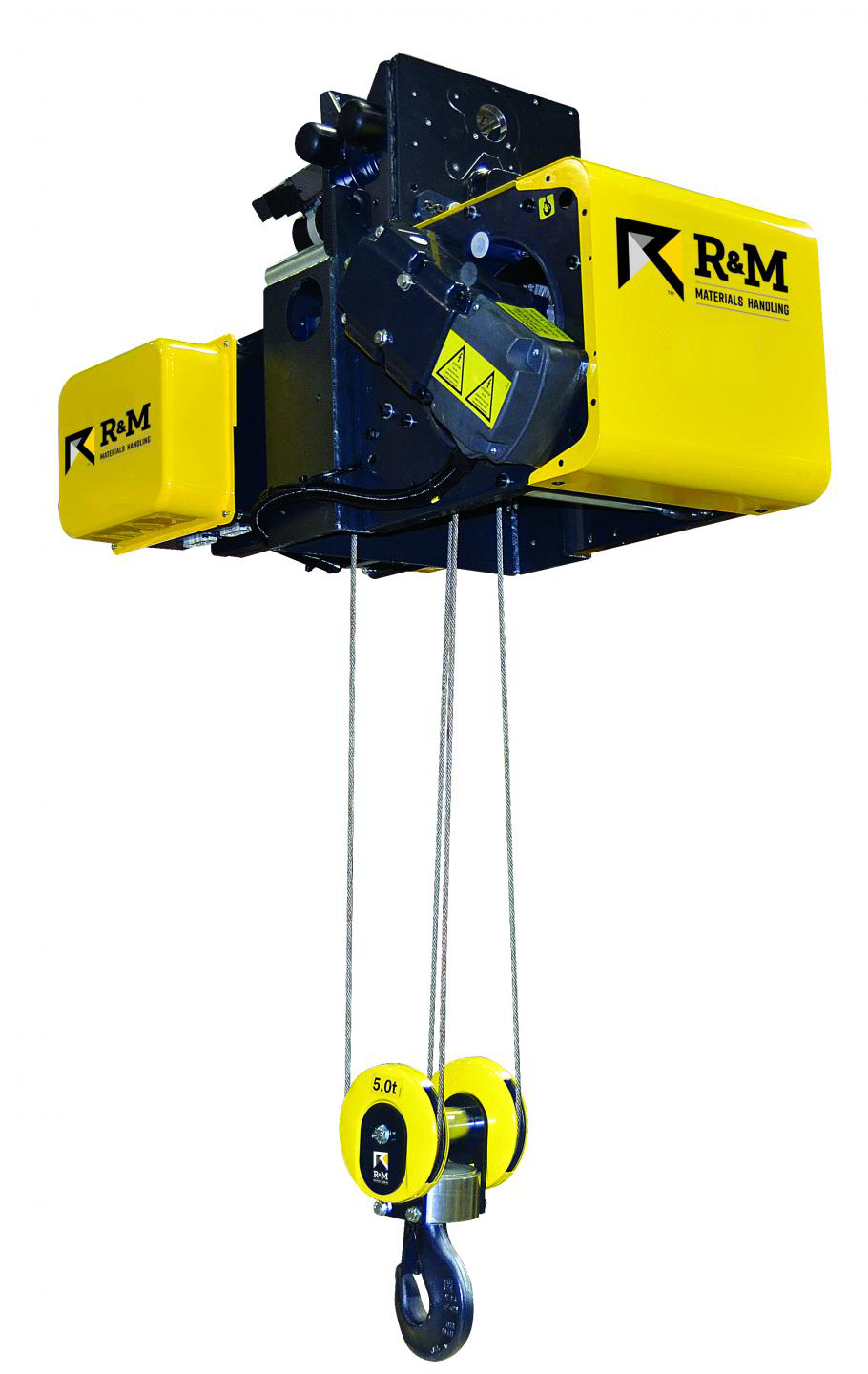

Spacemaster SX

Model
Spacemaster SX
Code
GW-U8U99S
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Capacity Ton
capacity_ton
0.5-80ton
1
Capacity (WLL)
capacity_kg
500-80000kg
1
Lift Range
lift_range_m
4-100m
1
Lift Range Ft
lift_range_ft
13-320ft
1
Lifting Speed Mpm
lifting_speed_mpm
3/0.5-19/3m/min
1
Lifting Speed Fpm
lifting_speed_fpm
10/1.5-62/10ft/min
1
Duty class
duty_class
up to FEM 3m / ASME H4+
1
Power supply
power_supply
208/230/460/575-3-60 or 380-3-50V/ph/Hz
1
Reeving
reeving
single-reeved or double-reeved
1
Drum To Rope Ratio
drum_to_rope_ratio
40:1
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
