Staging & Structures

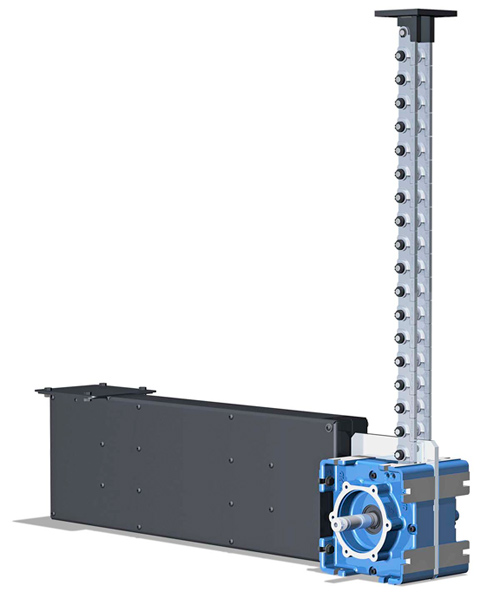

ChainLift

Manufacturer
SERAPID
Model
ChainLift 40 / ChainLift 60
Code
GW-J7FBNA
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Dynamic Static Capacity
dynamic_static_capacity_kn
7.5 / 20kN
1
Max Stroke
max_stroke_m
1 / 2m
1
Max Speed Mm S
max_speed_mm_s
200mm/s
1
Link Pitch
link_pitch_mm
40 / 60mm
1
Chain Weight Kg
chain_weight_kg_m
7.8 / 15.3kg/m
1
Drive Housing Weight
drive_housing_weight_kg
18.2 / 39.7kg
1
Service Life Cycles
service_life_cycles
250000cycles
1
Duty Cycles Per Hour
duty_cycles_per_hour
5-15cycles/h
1
Lubrication Interval Cycles
lubrication_interval_cycles
13000 then 50000cycles
1
Atex Rating
atex_rating
II 2GD c T4
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
