✦Truss: Straight / Corners

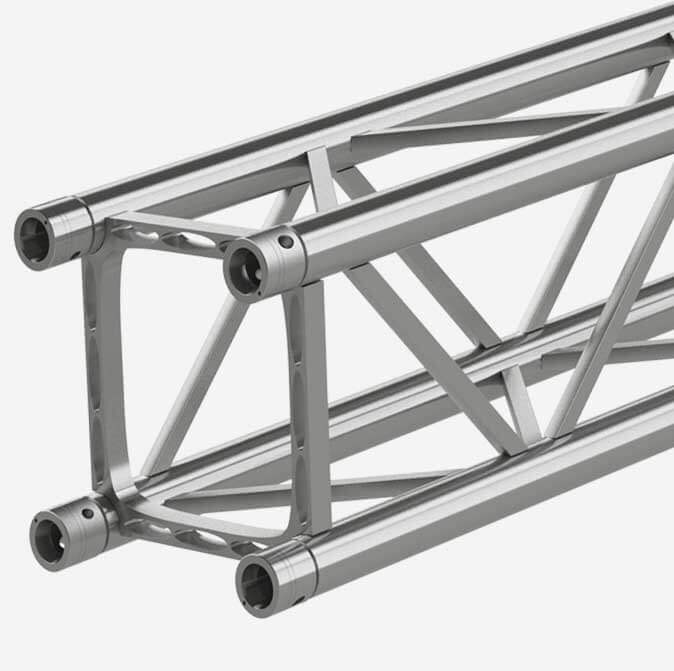

M39

Manufacturer
SIXTY82
Model
M39S
Code
GW-KWUCBF
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
Main chord diameter
main_chord_diameter_mm
48.3mm
1
Main chord wall thickness
main_chord_wall_thickness_mm
3mm
1
Weight per meter
weight_kg_per_m
6.9kg/m
1
Cross Section Size Cm
cross_section_size_cm
39cm
1
Cross Section Dimensions
cross_section_dimensions_mm
339 x 339mm
1
Alloy Grade
alloy_grade
EN AW-6082 T6
1
Cross Sections
cross_sections
ladder / triangular / square / rectangular
1
Available Lengths Cm
available_lengths_cm
21, 25, 50, 81, 100, 200, 250, 300, 400cm
1
Rfid
rfid
integrated SIXTYTag
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
