✦Staging & Structures

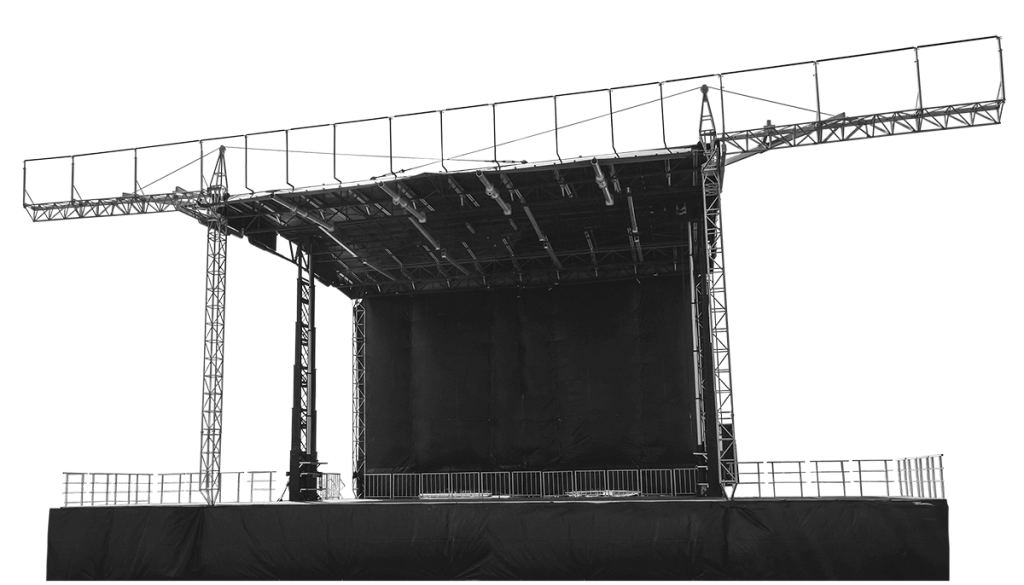

SAM575

Manufacturer
Stageline
Model
SAM575
Code
GW-OSHLLV
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
Deck Size Base
deck_size_base
15.2 x 11.6m
1
Deck Size Max
deck_size_max
27.4 x 17.1m
1
Rigging Capacity
rigging_capacity_kg
42637kg
1
Rigging Capacity Lb
rigging_capacity_lb
94000lb
1
Trim Height
trim_height_m
10m
1
Lateral Screen Support
lateral_screen_support_kg
5443kg
1
Upstage Screen Support
upstage_screen_support_kg
4535kg
1
Wind Resistance No Walls Kmh
wind_resistance_no_walls_kmh
185km/h
1
Wind Resistance With Walls Kmh
wind_resistance_with_walls_kmh
123km/h
1
Crowd Capacity
crowd_capacity
10000 or morepeople
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
