✦Line Arrays

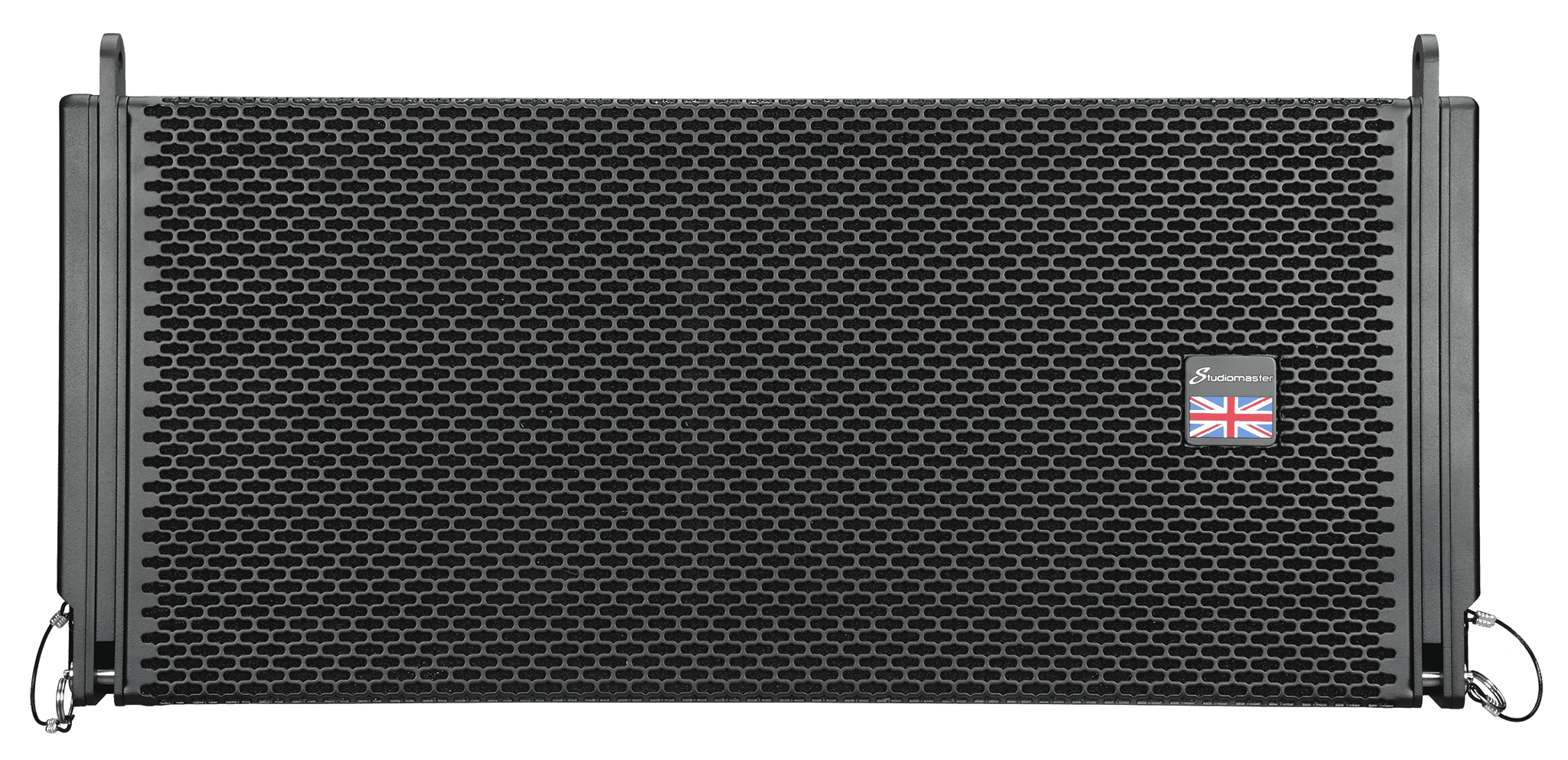

V310

Manufacturer
Studiomaster
Model
V310
Code
GW-RO5PVE
Data status
Level 1 / 5
AI-parsed

❋ Specs

13
Cabinet Type
cabinet_type
3-way passive line array
1
Frequency range
frequency_range_hz
50-20000Hz
1
Max SPL
max_spl_db
142 (MHF) / 135 (LF)dB
1
RMS power
power_rms_w
1300 (LF 900 + MHF 400)W
1
Peak power
power_peak_w
5200 (LF 3600 + MHF 1600)W
1
Impedance
impedance_ohm
16ohm
1
LF driver
lf_driver
2 x 10" neodymium / 75mm VC
1
Mf Driver
mf_driver
1 x 8" neodymium / 50mm VC
1
HF driver
hf_driver
2 x 3" neodymium compression
1
Coverage angle
coverage_angle_deg
90 x 10deg
1
Crossover frequency
crossover_hz
250Hz
1
Dimensions
dimensions
706 x 304 x 526mm
1
Weight
weight_kg
34kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
