✦Lighting

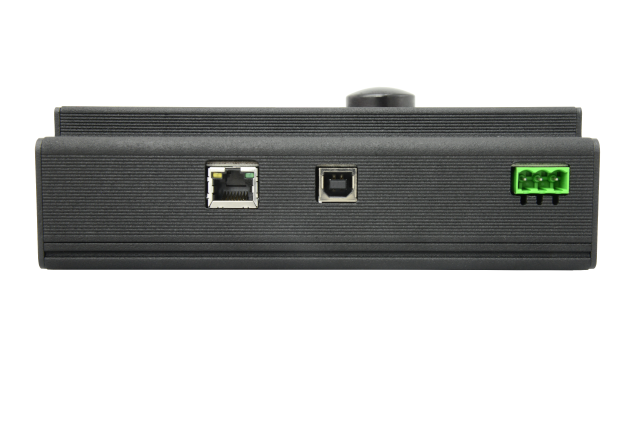

XND-4D

Manufacturer
Swisson
Model
20 16 10
Code
GW-VFJAMI
Data status
Level 1 / 5
AI-parsed

❋ Specs

10
DMX universes
dmx_universes
4
1
DMX ports
dmx_ports
4 (each configurable as input or output, optically isolated)
1
Connectors
connectors
RJ45 & pluggable terminal
1
Protocols
protocols
Art-Net 1-4 (DMX & RDM), sACN (incl. draft v0.2), RDM on outputs
1
Input voltage
input_voltage_v
10-48V DC
1
Power
power_w
4W
1
Dimensions
dimensions
176.5 x 90 x 63.27mm
1
Weight
weight_kg
0.67kg
1
Mounting
mounting
DIN rail
1
Operating temperature
operating_temperature_c
-30 to +55degC
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
