✦Lighting

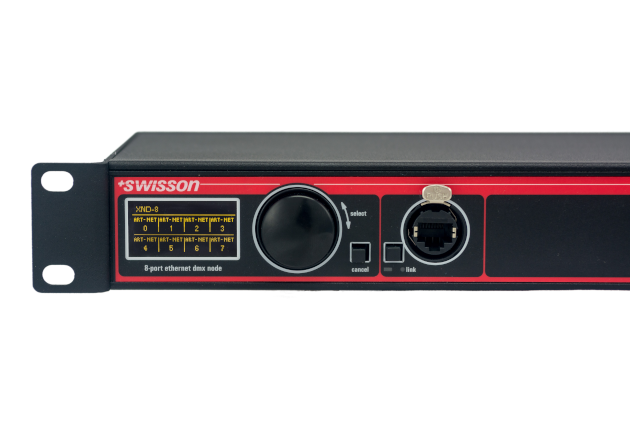

XND-8R8

Manufacturer
Swisson
Model
10 48 32
Code
GW-8UOIQS
Data status
Level 1 / 5
AI-parsed

❋ Specs

9
DMX universes
dmx_universes
8
1
DMX ports
dmx_ports
8
1
Port Direction
port_direction
each port configurable as input or output, optically isolated
1
Connectors
connectors
RJ45 (DMX), etherCON, Neutrik powerCON in/out
1
Protocols
protocols
Art-Net 1-4 (DMX & RDM), sACN
1
Input voltage
input_voltage_v
100-240V AC
1
Dimensions
dimensions
482.6 (19") x 136 x 44.5mm
1
Rack units
rack_units_u
1U
1
Weight
weight_kg
1.8kg
1

Every field carries its own trust-tier: core data is confirmed by the manufacturer, peripheral data — by AI (with a source link). Safety-critical parameters (load ratings) are never published below vendor-claimed — a liability requirement.
